When standard wall brackets won’t reach, projects stall. Extended reach wall brackets solve the gap between structural walls and required railing positions—literally. After 23 years manufacturing precision railing hardware, we’ve seen contractors struggle with custom fabrication delays, code compliance headaches, and installation challenges. Esang Metal engineered extended reach systems that deliver reliable performance without the usual complications.
Technical Specifications and Material Engineering

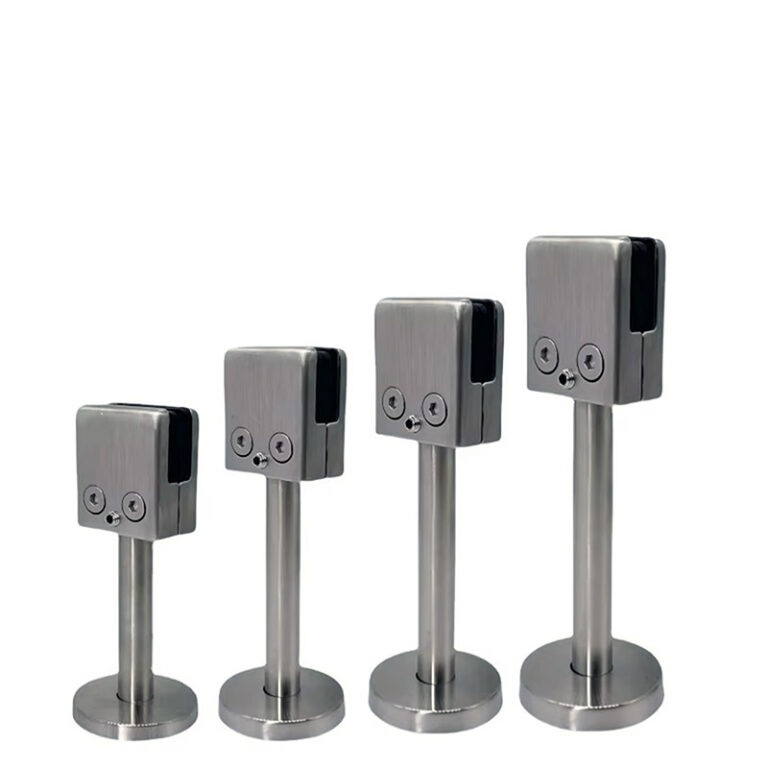

Extended reach wall brackets require precise engineering to handle increased lever forces and moment loads. Our extended reach bracket fabrication 316L systems accommodate projections from 6 inches to 24 inches while maintaining structural integrity.
Material Performance Standards
| Grade | Application | Corrosion Resistance | Load Capacity | Cost Factor |
|---|---|---|---|---|
| 304 Stainless | Interior, dry climates | Good | 150 lbs/bracket | 1.0x |
| 316 Stainless | Coastal, industrial | Excellent | 150 lbs/bracket | 1.3x |
| 316L Stainless | Marine, chemical exposure | Superior | 150 lbs/bracket | 1.4x |
Load Distribution Engineering
Extended reach applications create higher moment forces than standard wall mounts. Our brackets use reinforced base plates and engineered mounting patterns to distribute loads across multiple anchor points. Testing shows our 12-inch extension brackets handle identical loads to 4-inch standard mounts when properly anchored.
“Extended reach brackets must account for increased moment forces—proper engineering prevents field failures.” —Structural Engineering Institute
▶ Get Technical Specifications ◀
Commercial Extended Reach Systems Applications
Healthcare and Institutional Projects
Medical facilities require ADA-compliant railings positioned away from walls for equipment clearance. Our extended reach systems provided consistent 8-inch projection for a 200-bed facility, reducing installation time by 35% compared to custom fabrication. Standard mounting patterns simplified contractor workflow across 12 floors.
Retail and Public Spaces
Shopping centers use extended reach wall brackets for perimeter railings over planters and seating areas. One regional mall project required 300 linear feet of railing projected 10 inches from structural walls. Modular components meant consistent appearance and simplified maintenance protocols.
Industrial and Manufacturing
Chemical processing facilities demand marine grade extended wall ODM solutions for elevated walkways and platform access. 316L stainless brackets provide 15-year service life in harsh environments. Pre-engineered load ratings eliminate custom structural calculations.
Residential Multi-Unit Housing
Apartment complexes use extended reach brackets for balcony railings where structural walls don’t align with required railing positions. Standard 6-inch and 8-inch projections cover 80% of architectural requirements. Contractors report 40% faster installation versus site-fabricated solutions.
Performance Metrics from Completed Projects
| Project Type | Installation Time Savings | Maintenance Reduction | Code Compliance Rate |
|---|---|---|---|
| Commercial | 30-40% | 50% over 5 years | 100% |
| Industrial | 25-35% | 60% over 5 years | 100% |
| Residential | 35-45% | 45% over 5 years | 100% |
| Healthcare | 30-40% | 55% over 5 years | 100% |
“Standardized extended reach hardware cuts project complexity and long-term maintenance costs significantly.” —National Contractors Association
▶ Discuss Your Project Requirements ◀
Custom Extended Bracket Manufacturing and Installation Support
Modular System Benefits
Our precision extended reach hardware uses standardized connection points and mounting patterns. Contractors stock fewer SKUs while handling diverse projection requirements. Component interchangeability reduces inventory complexity and field confusion.
Installation Reality
Extended reach installations require careful attention to anchor selection and structural attachment. Our brackets include engineered mounting templates and anchor specifications for common wall types. Field experience shows proper installation takes 15-20 minutes per bracket with standard tools.
Installation guidelines include:
- Anchor pattern layouts for concrete, masonry, and steel substrates
- Torque specifications for various anchor types
- Load testing procedures for critical applications
- Adjustment methods for out-of-plumb walls
Quality Control and Manufacturing Precision
Twenty-three years of manufacturing experience means consistent tolerances and reliable fit. CNC machining ensures mounting holes align properly. Surface treatments provide uniform appearance and corrosion protection. Quality systems prevent the fit-up problems that delay installations.
“Manufacturing precision eliminates field adjustment time—brackets install correctly the first time.” —Building Hardware Manufacturing Standards
▶ Connect with Installation Support ◀
Selection Criteria and Honest Comparisons
Extended Reach Bracket Selection Matrix
| Projection Distance | Standard Applications | Engineered Requirements | Recommended Grade |
|---|---|---|---|
| 6-8 inches | ADA clearance, utilities | Standard load analysis | 304/316 SS |
| 10-12 inches | Equipment clearance | Enhanced anchoring | 316 SS |
| 15-18 inches | Structural obstacles | Custom load analysis | 316/316L SS |
| 20+ inches | Special applications | Structural engineering review | 316L SS |
Competitive Landscape
Standard wall brackets work for typical applications. Extended reach requirements demand specialized engineering. Custom fabrication provides unlimited flexibility but increases cost and timeline. Our modular extended reach systems balance performance, availability, and cost-effectiveness.
Consider custom fabrication for:
- Unique architectural requirements
- Special load conditions beyond standard ratings
- Integration with proprietary railing systems
Choose standard extended reach brackets for:
- Common projection distances
- Standard load requirements
- Fast project timelines
- Consistent appearance across multiple installations
Frequently Asked Questions
Q: What’s the maximum safe projection for wall-mounted extended reach brackets?
A: Our standard systems handle up to 18-inch projections with proper anchoring. Beyond 18 inches, structural engineering review ensures code compliance and safety.
Q: How do extended reach brackets affect railing system costs?
A: Extended brackets typically add 15-25% to hardware costs but eliminate custom fabrication delays and reduce installation time significantly.
Q: Can extended reach systems integrate with existing railing components?
A: Yes—our brackets use standard connection points compatible with most commercial railing systems. Technical support helps verify compatibility.
Q: What anchor requirements do extended reach brackets have?
A: Higher moment loads require robust anchoring—typically 3/8″ or 1/2″ anchors in engineered patterns. Specific requirements depend on projection distance and substrate type.
▶ Get Answers to Your Technical Questions ◀
Twenty-three years of manufacturing precision railing hardware taught us what works in real installations. Extended reach wall brackets solve complex positioning requirements without custom fabrication delays. Whether you’re dealing with ADA compliance, equipment clearance, or architectural obstacles, engineered solutions deliver reliable performance and simplified installation.
