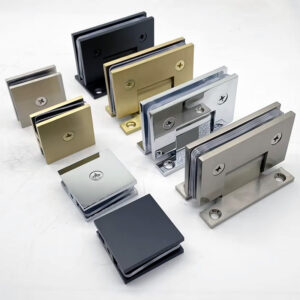

Structural glass brackets

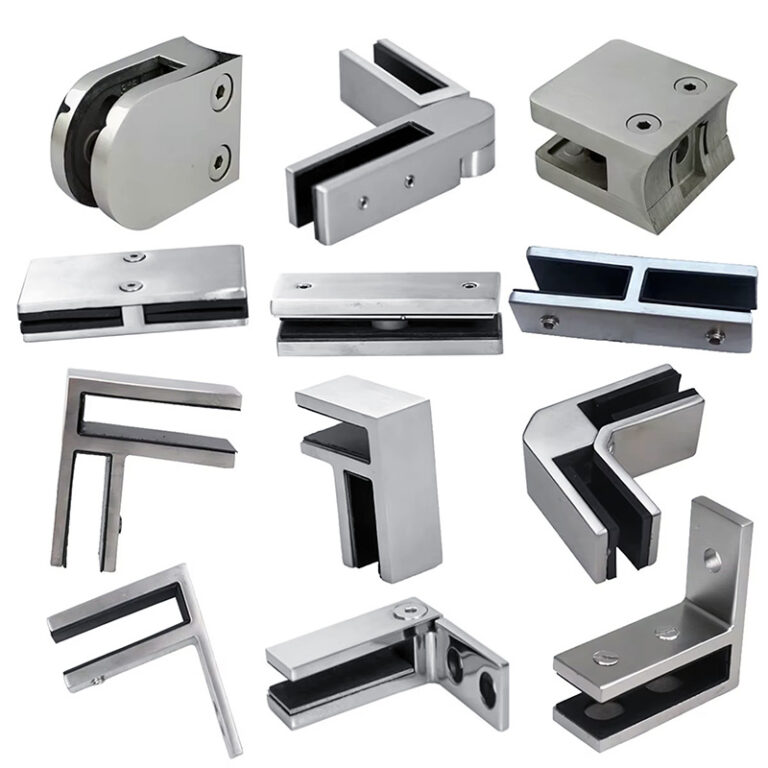

Assortment of straight, curved and corner metal clamps and brackets with black liners

Structural glass brackets are project-specific connection components within a defined glass load path. The word “structural” should not be inferred from a polished surface, a thick body or a product-family name. A usable selection starts with the design actions, glass make-up, bracket geometry, fasteners and supporting structure that will be verified together.

If the requirement is only to locate or support a panel edge, a glass panel support bracket may be the clearer purchasing route. If the requirement is a point spacer or a post interface, use the corresponding adapter specification. For a structural bracket inquiry, send the project connection detail or load criteria, glass schedule, substrate information and estimated quantity.

Discuss structural glass brackets on WhatsApp

Define the load path before selecting the bracket

State what the glass assembly must resist and where those actions are intended to go. Depending on the application, relevant actions may include glass self-weight, occupant loading, wind, impact, movement or other project-specific demands. The responsible designer should convert those conditions into connection reactions and acceptance requirements for the exact layout.

A bracket capacity cannot be selected independently of:

  • panel dimensions, glass type, ply build-up, interlayer and edge condition;
  • hole, notch, clamp or bearing detail at the glass;
  • bracket spacing, orientation and eccentricity;
  • pads, sleeves, setting pieces and permitted contact zones;
  • fastener type, engagement, edge distance and installation condition;
  • supporting steel, concrete, timber or other verified backing;
  • movement, temperature, water and environmental exposure.

Changing any one of these fields can change the connection behaviour. A test or rating for another supplier’s assembly, another glass build-up or another anchor arrangement should not be transferred to an ESANG proposal.

Concept illustration showing a glass load path through pads, bracket, fastener and backing structure
Concept illustration—the complete load path runs through glass, protective interfaces, bracket, fastener and backing. Not a product photo, not an engineering drawing and not to scale.

Choose the glass-side connection

Clamped edge

A clamped detail can avoid a hole at that connection, but it still needs the correct glass build-up, pad set, engagement and slip-control strategy. Clarify whether the clamp bears weight, restrains movement or both. The exact role must be shown on the project drawing.

Point-fixed hole

A point connection needs a coordinated hole, protective sleeve or washer stack and defined fastener axis. Hole diameter, centre, edge distance and countersink if any must be frozen before heat treatment. For laminated glass, show individual plies and interlayer rather than only total nominal thickness.

Bearing seat or notch

A seated connection can introduce local bearing at an edge or processed cut-out. Confirm seat depth, contact length, liner and installation tolerance with the glass processor and responsible designer. A hard edge or undersized liner can concentrate stress even when the metal body appears substantial.

Geometry controls more than appearance

Bracket projection, angle, fastener spacing and glass centreline affect both alignment and force transfer. Provide plan, elevation and section views for straight, corner, return or sloped conditions. Include the intended panel gap, stand-off, bracket orientation and any required field adjustment.

Adjustment should be designed, not improvised. Request that the proposal state which directions can be adjusted, at what stage, and how the final position is locked. Packing behind a bracket, enlarging a hole or omitting a pad to recover an incorrect site dimension can invalidate the intended connection.

Verify the backing and fasteners

The supporting member must be identified beyond its visible finish. Concrete strength and edge condition, steel thickness and weld detail, timber build-up, hollow-section wall and concealed backing all affect the possible attachment. The anchor or fastener design must consider the actual member, edge distances, spacing, installation access and project actions.

Unless the quotation explicitly lists anchors and verifies their intended substrate, treat the receiving anchors and backing as a separate project responsibility. Ask ESANG to show the bracket hole pattern, interface dimensions and any proposed fastener that is part of the component package so the project engineer can complete the check.

Allow for movement and exposure

Large panels and building structures can move differently. The design team should define which points locate the glass, which permit intended movement, and how seals or adjacent finishes behave. Do not assume every slotted hole is a movement joint or every flexible gasket provides engineered movement capacity.

For exterior, coastal, pool or industrial exposure, provide the environment, cleaning regime, adjacent metals and water paths. Request the proposed bracket material, finish, pad material and maintenance assumptions in writing. A product image cannot prove alloy, treatment, durability or suitability for the project.

Plan fabrication and installation together

The bracket layout should be approved before glass fabrication and before concealed backing is closed. Coordinate:

  • surveyed mounting faces and actual support positions;
  • glass holes, notches and finished edges before heat treatment;
  • temporary glass support and installation sequence;
  • tool access for every fastener and final tightening step;
  • specified tightening method or torque where the verified system provides one;
  • protection from construction damage and access for future inspection or glass replacement.

Do not use fastener tightening to pull a warped bracket, misaligned backing or displaced glass into position. Record any mismatch before permanent assembly and resolve it against the approved detail.

Supply and evidence boundary

A comparable structural-bracket offer should identify:

  • the proposed bracket geometry, material and finish;
  • glass-contact pads, sleeves, setting pieces and covers;
  • component fasteners included in the supply;
  • anchors or backing hardware only when explicitly listed;
  • the glass build-up and connection detail used for any stated evidence;
  • available drawings, material documents, test reports or calculations and their exact scope;
  • clear exclusions for glass, anchors, structure, installation and project engineering.

A material certificate confirms material for the documented part; it does not establish bracket capacity or completed-system compliance. A component test applies only to its stated configuration and conditions. The project team must decide whether the evidence meets the local approval and design requirements.

Information for a useful quotation

Send available drawings or a marked-up section first. Before a structural proposal is frozen, close these fields:

  • application, jurisdiction and required performance or design actions;
  • panel size, glass type, ply build-up, interlayer and edge finish;
  • hole, notch, clamp or bearing detail and bracket locations;
  • reaction or load criteria from the responsible designer;
  • supporting member, dimensions, material, backing and edge distances;
  • fastener and anchor responsibility, access and installation sequence;
  • movement, temperature, water, salt, chemicals and adjacent metals;
  • quantity, finish preference, approval documents and inspection requirements.

The quotation should state the exact proposed component package, assumptions, evidence available for that package and open items that still require project verification. This is the point at which two structural bracket proposals become meaningfully comparable.

Send your connection detail to ESANG
