Cable railing looks clean and modern, but it only works when every component performs exactly as designed. Cable end stops might seem like small details, but they’re critical connection points that determine whether your cable system stays tight, meets code, and performs reliably over time. After 23 years manufacturing precision hardware components, we’ve seen how the right end stops make installation faster and long-term performance predictable—while the wrong ones create callbacks, safety issues, and frustrated customers.
Understanding Cable End Stop Components
Essential End Stop Types
Swaged End Fittings: Permanently attached using hydraulic crimping, these provide the highest strength connections. Available in ball, stud, and threaded configurations to match different post and mounting requirements. Load ratings typically range from 1,000 to 3,000 pounds depending on cable diameter and fitting type.

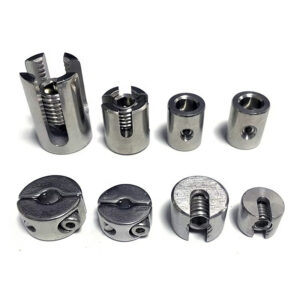

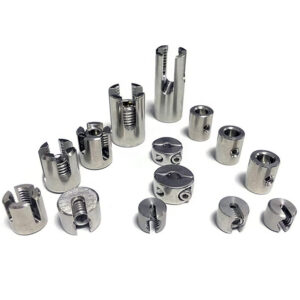

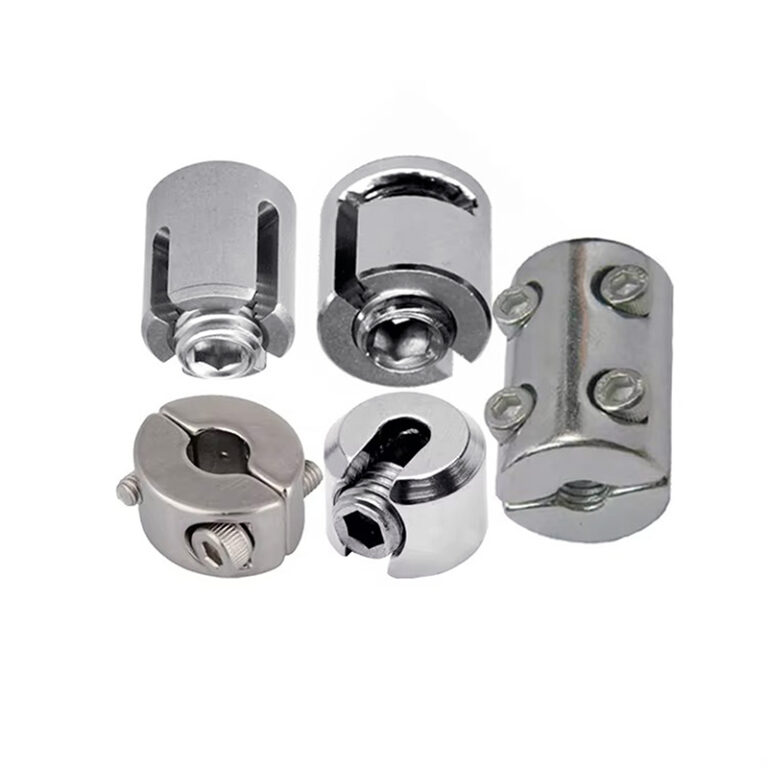

Mechanical End Stops: Field-adjustable options using compression or set screw attachment. These allow for tension adjustments during installation and future maintenance. Best for systems where periodic adjustments are expected or where field modifications might be needed.
Threaded Stud Assemblies: Combined end stop and adjustment mechanism, these thread directly into posts or mounting hardware. Popular for through-post installations where clean aesthetics matter and adjustment access is limited.
Terminal Hardware Integration: End stops that incorporate mounting brackets, wall anchors, or post connections into single assemblies. These reduce part count and installation time while ensuring proper load transfer.
Material Selection for Performance
316L Stainless Steel: Marine grade material for coastal applications, pool areas, and high-corrosion environments. The low-carbon content prevents carbide precipitation, maintaining corrosion resistance even after welding or forming during cable end stop fabrication 316L processes.
304 Stainless Steel: Standard grade for most interior and protected exterior applications. Provides excellent strength and moderate corrosion resistance at lower cost than 316L grades.
Duplex Stainless Options: For extreme load or corrosion requirements, duplex grades offer nearly double the strength of standard stainless with superior pitting resistance.
Our custom cable stop manufacturing capabilities include material certification, dimensional verification, and load testing to ensure each component meets specified performance requirements.
Fabrication Precision Standards
Critical dimensions include cable bore diameter (±0.002″ tolerance), thread pitch accuracy, and surface finish consistency. Precision end stop hardware requires careful attention to these specs—loose tolerances lead to cable damage, uneven loading, and premature system failure.
| Cable Diameter | End Stop Bore | Crimping Force | Typical Load Rating |
|---|---|---|---|
| 1/8″ (3.2mm) | 0.128″ ±0.002″ | 2,500 lbs | 1,000 lbs working |
| 5/32″ (4.0mm) | 0.158″ ±0.002″ | 4,000 lbs | 1,500 lbs working |
| 3/16″ (4.8mm) | 0.190″ ±0.002″ | 6,000 lbs | 2,000 lbs working |
| 1/4″ (6.4mm) | 0.252″ ±0.002″ | 8,500 lbs | 3,000 lbs working |
▶ Get Complete Specification Sheets ◀
Application-Specific Solutions
Residential Projects: Consistency and Code Compliance
Multi-unit housing and residential renovations need standardized solutions that install consistently across different crews. Commercial cable end components designed for residential scale offer contractor-friendly features: pre-sized for common cable runs, standard thread pitches that match available hardware, and clear load ratings for code compliance documentation.
Typical residential installations see 25-30% faster completion when using properly sized end stops versus field-modified alternatives. Standardized components also simplify inspection processes and reduce callback risk.
Commercial Applications: Load Performance and Maintenance Access
Office buildings, retail spaces, and public facilities require end stops that handle higher loads while providing maintenance access. These applications often demand marine grade cable stops ODM solutions even in inland locations due to cleaning chemical exposure and heavy usage patterns.
“Commercial cable systems need components that maintain performance under constant use and aggressive cleaning schedules.” —Building Maintenance Association
Key considerations include UV stability for curtain wall applications, chemical resistance for medical or food service facilities, and accessibility for periodic tension adjustments.
Marine and Coastal Environments
Salt air, temperature cycling, and direct water exposure demand premium materials and proven designs. Our marine grade cable stops use 316L stainless throughout with additional passivation treatment for extended service life.
Field performance data from yacht clubs and waterfront properties shows 15+ year service life with minimal maintenance when proper material grades are specified. Lower-grade alternatives typically require replacement within 5-7 years in these environments.
Industrial and Infrastructure Projects
Manufacturing facilities, warehouses, and infrastructure applications need end stops that handle vibration, temperature extremes, and extended service intervals. These projects often combine high loads with limited maintenance access.
▶ Discuss Project-Specific Requirements ◀
Installation Efficiency and Quality Control
Proper Crimping Procedures
Swaged connections require hydraulic crimping tools with specific force ratings. Under-crimping reduces connection strength by up to 40%, while over-crimping can damage cable strands or distort the end fitting.
Standard procedure includes:
- Cable preparation with proper cutting tools
- End stop positioning with manufacturer-specified insertion depth
- Single-stroke crimping at rated pressure
- Visual inspection for uniform compression
- Pull testing where codes require
Field Adjustment Capabilities
Mechanical end stops allow field adjustment but require proper installation technique. Set screw types need appropriate torque values—too loose allows slippage, too tight damages cable strands.
| End Stop Type | Installation Time | Adjustment Range | Load Capacity |
|---|---|---|---|
| Swaged Permanent | 2 minutes | None | 100% cable rating |
| Mechanical Compression | 4 minutes | ±1/2″ | 85% cable rating |
| Threaded Adjustment | 6 minutes | ±1″ | 90% cable rating |
| Integrated Terminal | 3 minutes | Limited | 95% cable rating |
Quality Verification
Post-installation verification includes visual inspection of all connections, tension measurement across cable runs, and documentation for code compliance. Proper end stops make this process straightforward with clear pass/fail criteria.
▶ Request Installation Guidelines ◀
Supply Chain and Inventory Management
Standardization Benefits
Using consistent end stop designs across projects simplifies inventory management and reduces crew training time. Esang Metal manufacturing standards ensure dimensional consistency between production runs, allowing contractors to stock standard sizes with confidence.
Custom Manufacturing Capabilities
Projects with unique requirements benefit from custom cable stop manufacturing services. Our 23 years of experience include special thread patterns, modified geometries for tight spaces, and enhanced corrosion resistance for specific environments.
Typical custom lead times range from 2-4 weeks depending on complexity and quantity requirements. Design verification and sample approval add 1-2 weeks to initial orders.
Volume Planning
Distributors and large contractors benefit from coordinated deliveries and batch specifications. Our production planning accommodates project schedules while maintaining quality consistency across large orders.
Technical Comparison and Selection
Performance vs. Cost Analysis
| Feature | Swaged Permanent | Mechanical Adjust | Threaded System | Integrated Terminal |
|---|---|---|---|---|
| Initial Cost | Low | Medium | Medium-High | High |
| Installation Labor | Low | Medium | Medium | Low |
| Field Adjustability | None | High | Medium | Limited |
| Long-term Reliability | Excellent | Good | Good | Very Good |
| Maintenance Access | N/A | Good | Fair | Limited |
Material Grade Selection
Standard Applications: 304 stainless provides adequate performance for most interior and protected exterior installations at reasonable cost.
Coastal/Marine: 316L stainless essential for salt air exposure. Initial premium pays for itself through extended service life and reduced maintenance.
High-Load Industrial: Consider duplex grades where cable tensions approach standard stainless limits or where vibration/cycling loads are present.
▶ Get Material Selection Guidance ◀
Frequently Asked Questions
How do I select the right end stop type for my application?
Consider three factors: load requirements, adjustment needs, and maintenance access. Permanent swaged connections offer maximum strength but no field adjustment. Mechanical types allow adjustment but at some strength reduction. Match the solution to your specific needs rather than defaulting to lowest cost.
What’s the difference between 304 and 316L stainless for cable end stops?
316L contains molybdenum for enhanced corrosion resistance and uses low-carbon content to prevent carbide precipitation. Use 316L for any salt air exposure, pool areas, or aggressive cleaning environments. 304 works fine for interior applications and most protected exterior installations.
Can cable end stops be reused if cables need replacement?
Swaged permanent connections cannot be reused—they’re designed for one-time installation. Mechanical compression types can sometimes be reused if not damaged during removal. Threaded systems offer the best reusability. Factor replacement costs into your system selection.
How do I ensure proper load ratings for code compliance?
Specify components with documented load testing and material certifications. Working loads should be 1/4 to 1/5 of ultimate strength depending on local codes. Maintain documentation for inspection. Our components include test certificates and load rating documentation.
What causes cable end stop failures in service?
Common failure modes include corrosion from incorrect material grades, overloading from inadequate sizing, and installation errors like improper crimping or overtightening. Using properly specified components and following installation procedures prevents most service issues.
How do custom manufacturing timelines affect project scheduling?
Standard components ship immediately from stock. Custom modifications typically require 2-4 weeks plus 1-2 weeks for initial design approval. Plan custom requirements early in the design phase. We can often suggest standard alternatives that meet special requirements without custom manufacturing delays.
Making the Right Choice
Cable end stops represent a small percentage of total system cost but critically impact performance, safety, and long-term reliability. Choosing based solely on initial cost often creates expensive problems later—callbacks, premature replacement, and safety concerns that damage contractor reputations.
Our 23 years of manufacturing experience has shown that proper specification and quality components actually reduce total project cost through faster installation, fewer site issues, and extended service life. Whether you need standard hardware for straightforward applications or custom solutions for unique requirements, the key is matching component capabilities to actual performance demands.
▶ Connect with Our Technical Team ◀
The right cable end stops make cable railing systems work as intended—reliably, safely, and efficiently. Choose components that deliver proven performance backed by manufacturing precision and technical support that helps ensure successful installations.
