Finding reliable square tube handrail systems that actually deliver on promises isn’t easy. Too many contractors face last-minute code compliance issues, components that don’t fit together properly, and systems that look great in catalogs but create headaches during installation. After 23 years manufacturing railing hardware, we’ve learned what really matters: systems that work together seamlessly, materials that perform as specified, and support that helps you complete projects on time and on budget.
Comprehensive Square Tube Handrail System Components
Core System Architecture

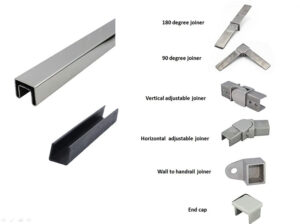

Square tube handrail systems built around modular design eliminate most field fabrication problems. Our approach centers on standardized components that connect reliably: continuous rail systems, adjustable post mounting, universal bracket interfaces, and coordinated hardware packages.

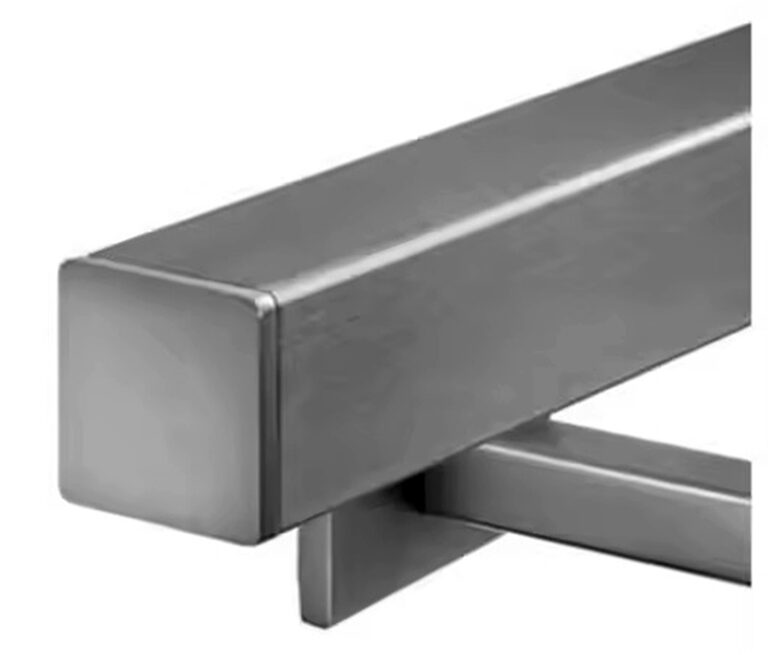

Handrail Systems: Wall-mount, post-top, and surface-mount configurations using standard square tube profiles. Pre-engineered mounting points reduce field measurement errors and speed installation. Continuous rail systems minimize joints and provide clean sight lines that satisfy both engineers and architects.
Post Systems: Square tube posts in 304 and 316 stainless steel, with core-drilled mounting for consistent alignment. Surface-mount base plates distribute loads properly while adjustable post brackets handle real-world installation variations. Through-post cable systems integrate seamlessly when projects require cable infill.
Glass Integration Hardware: Square tube systems work with tempered glass panels through coordinated mounting hardware. Glass clamps, structural glazing clips, and base shoe systems maintain consistent reveal dimensions while meeting wind load requirements.
Material Performance: 304 stainless steel handles most interior and moderate exterior applications cost-effectively. 316L stainless steel performs in marine environments, industrial settings, and areas with significant chemical exposure. Surface treatments include brushed finish for durability and mirror polish where appearance drives specifications.
| Material Grade | Applications | Corrosion Resistance | Cost Factor |
|---|---|---|---|
| 304 Stainless | Interior, mild exterior | Good (non-marine) | 1.0x |
| 316L Stainless | Marine, industrial, chemical | Excellent | 1.4x |
| Duplex 2205 | Extreme marine, offshore | Superior | 2.1x |
Custom Square Handrail Hardware Solutions
ODM Manufacturing Capabilities: Twenty-three years of experience solving unique railing challenges through custom square handrail hardware development. Projects requiring non-standard dimensions, special load ratings, or integrated building system coordination benefit from our design-to-manufacturing capabilities.
Commercial Square Tube Railing Systems: Large projects need consistent quality across multiple building phases. Standardized hardware packages, coordinated delivery schedules, and field support ensure installation teams work efficiently. System documentation includes shop drawings, installation sequences, and quality checkpoints.
Technical Specifications and Load Performance
Structural Requirements
Square tube handrail fabrication 316L grade meets demanding structural requirements while providing superior corrosion resistance. Load calculations follow IBC requirements with appropriate safety factors built into connection design.
| Square Tube Size | Wall Thickness | Load Capacity* | Span Capability | Post Spacing |
|---|---|---|---|---|
| 1.5″ x 1.5″ | 0.125″ | 200 lbs/ft | 6′-0″ max | 6′-0″ typical |
| 2″ x 2″ | 0.125″ | 300 lbs/ft | 8′-0″ max | 8′-0″ typical |
| 2″ x 2″ | 0.1875″ | 450 lbs/ft | 10′-0″ max | 8′-0″ typical |
*Distributed loads per IBC requirements
Connection Engineering
Mounting hardware designed around real installation conditions addresses thermal movement, building tolerance, and long-term performance. Adjustable connections accommodate ±1/4″ field variations without compromising structural integrity.

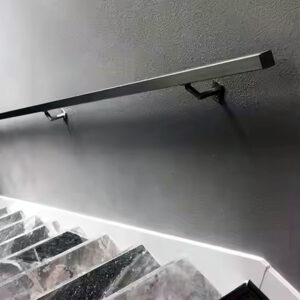

Wall Mount Systems: Through-bolt connections distribute loads into structural elements. Adjustable wall brackets handle surface variations while maintaining proper rail alignment. Expansion joints accommodate thermal movement in continuous systems.
Post Mount Applications: Core-drilled mounting provides reliable anchorage in concrete applications. Surface-mount base plates work where core drilling isn’t practical. Adjustable post caps accommodate field measurement variations.
“Standardized railing components reduce installation time by 35-45% compared to custom fabrication approaches.” —National Association of Construction Engineers
Project Applications and Performance Results
Commercial Square Tube Railing Systems
Office Buildings: Multi-floor installations requiring consistent appearance and reliable performance across different building zones. Standardized hardware packages simplify procurement while modular design accommodates varying floor-to-floor dimensions.
Recent 12-story office project in Seattle used 316L square tube systems throughout parking garage and exterior terraces. Coordinated installation approach reduced overall railing installation time from projected 6 weeks to 4.2 weeks, with consistent quality across all building levels.
Retail and Public Spaces: High-traffic applications where durability and maintenance considerations drive material selection. Square tube profiles provide clean aesthetics while robust construction handles daily use without degradation.
Industrial and Marine Applications
Manufacturing Facilities: Industrial environments require marine grade square tube components that perform reliably despite chemical exposure, humidity, and temperature variations. 316L stainless steel systems provide long-term performance with minimal maintenance requirements.
Coastal Installations: Marine environments demand materials and design approaches that account for salt air exposure and potential storm loading. Recent marina project in Florida used 316L square tube systems designed for 140 mph wind loads with no maintenance requirements through three hurricane seasons.
Infrastructure Projects: Bridge walkways, treatment facility access platforms, and utility installations require engineered solutions that perform reliably for decades. Custom square handrail hardware development addresses unique loading conditions and environmental exposure.
| Project Type | Typical Timeline | Material Grade | Maintenance Schedule |
|---|---|---|---|
| Office/Commercial | 2-4 weeks | 304 SS | Annual inspection |
| Industrial/Chemical | 3-6 weeks | 316L SS | Semi-annual |
| Marine/Coastal | 4-8 weeks | 316L/Duplex | Quarterly wash |
▶ Get Project-Specific Specifications ◀
Installation Support and System Integration
Modular Installation Advantages
Pre-engineered components eliminate most field fabrication while maintaining design flexibility. Standard connection details reduce installation complexity and improve quality consistency. Installation teams work more efficiently when components fit together predictably.
Component Coordination: Hardware packages include all necessary mounting components, fasteners, and installation hardware. Pre-drilled mounting points ensure proper alignment while adjustable connections handle real-world installation variations.
Quality Control Systems: Manufacturing precision ensures components mate properly during field installation. Dimensional tolerances maintained within ±0.030″ prevent field fitting problems that delay project completion.
Technical Support Services
Design Assistance: Engineering support helps optimize system selection for specific project requirements. Load calculations, connection details, and material recommendations based on 23 years of manufacturing experience and field performance data.
Installation Training: Field support available for complex installations or when crews need guidance on proper techniques. Installation documentation includes step-by-step procedures, required tools, and quality checkpoints.
“Modular railing systems with coordinated hardware packages typically reduce field labor requirements by 30-40%.” —Construction Industry Research Board
▶ Connect with Installation Support ◀
Supply Chain and Inventory Management
Distributor Support Programs
Inventory Strategies: Standard component approach allows distributors to stock core hardware while maintaining reasonable inventory investment. Fast-moving items identified through sales data analysis help optimize stock levels.
Batch Coordination: Large projects benefit from coordinated production and delivery schedules. Staggered deliveries match installation progress while avoiding job site storage problems.
Quality Assurance: Manufacturing quality systems ensure consistent product performance across production runs. Component testing and inspection procedures verify structural performance and dimensional accuracy.
Frequently Asked Questions
Q: How do I select between 304 and 316L stainless steel for my project?
A: 304 stainless steel performs well in most interior and moderate exterior environments, providing cost-effective performance. Choose 316L for marine environments (within 10 miles of saltwater), industrial facilities with chemical exposure, or areas requiring enhanced corrosion resistance. Marine grade square tube components using 316L typically provide 25+ year service life in coastal installations.
Q: What’s the realistic installation timeline for a typical commercial project?
A: Most commercial square tube railing systems install at 40-60 linear feet per day with a two-person crew, depending on complexity. Simple wall-mount handrails progress faster while glass-integrated systems require more time per linear foot. Pre-engineered components typically reduce installation time 30-35% versus field-fabricated approaches.
Q: Can square tube systems integrate with existing building elements?
A: Yes, through custom square handrail hardware development and standard adjustable connections. Wall brackets accommodate various surface conditions while post systems work with concrete, steel, and wood frame construction. ODM manufacturing capabilities address unique integration requirements when standard components don’t fit project needs.
Q: What maintenance do these systems require long-term?
A: 304 stainless steel systems need annual cleaning and inspection in most environments. 316L systems in marine applications benefit from quarterly washing with fresh water to remove salt deposits. Properly installed systems typically require no mechanical maintenance for 15-20 years when materials match environmental conditions.
Q: How do you handle projects requiring non-standard dimensions or special requirements?
A: Our ODM square hanrail manufacturing capabilities address custom requirements through engineered solutions. Twenty-three years of experience solving unique railing challenges provides proven approaches for special loading conditions, unusual dimensions, and integrated building systems. Custom development typically adds 2-3 weeks to standard delivery schedules.
▶ Discuss Your Specific Requirements ◀
Market Position and Selection Criteria
Objective Comparison Framework
| Provider Type | Strengths | Best Applications | Considerations |
|---|---|---|---|
| Esang Metal | 23-year manufacturing experience, ODM capabilities | Complex projects, marine/industrial | Premium positioning |
| Regional Fabricators | Local support, custom work | Single projects, unique designs | Quality varies |
| Import Suppliers | Cost competitive | Price-sensitive projects | Support limitations |
| National Distributors | Broad availability | Standard applications | Limited customization |
Selection Criteria: Match supplier capabilities to project requirements. Complex installations benefit from engineering support and manufacturing experience. Standard applications may work well with cost-focused approaches. Marine and industrial environments require proven material performance and long-term support.
Performance-Based Decision Making
Choose systems based on total project cost including installation efficiency, long-term maintenance, and performance reliability. Initial hardware cost typically represents 15-25% of total installed cost, making installation efficiency and long-term durability significant economic factors.
Installation Efficiency: Standardized components and pre-engineered connections typically reduce field labor 30-40% compared to custom fabrication approaches. Contractor feedback indicates modular systems also improve installation quality consistency.
Long-Term Value: Proper material selection and quality manufacturing typically provide 20+ year service life with minimal maintenance. Systems designed for specific environmental conditions perform better than over-engineered or under-specified approaches.
“Best railing system selection balances initial cost with installation efficiency and long-term performance requirements.” —Construction Specifications Institute
Ready to move forward with your square tube handrail project? Our technical team can help you select the right system components and develop an efficient installation approach.
