Finding reliable square post hanrail brackets that meet code requirements while simplifying installation shouldn’t be a project headache. After 23 years manufacturing stainless steel railing systems, we’ve learned what contractors actually need: components that fit correctly the first time, materials that perform as specified, and support that helps projects stay on schedule. Square post systems offer structural advantages and clean aesthetics, but only when the hardware delivers consistent quality and straightforward installation.
Core Product Lines: Square Post Hanrail Brackets & Complete Systems
Handrail Mounting Systems

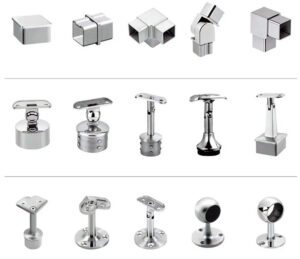

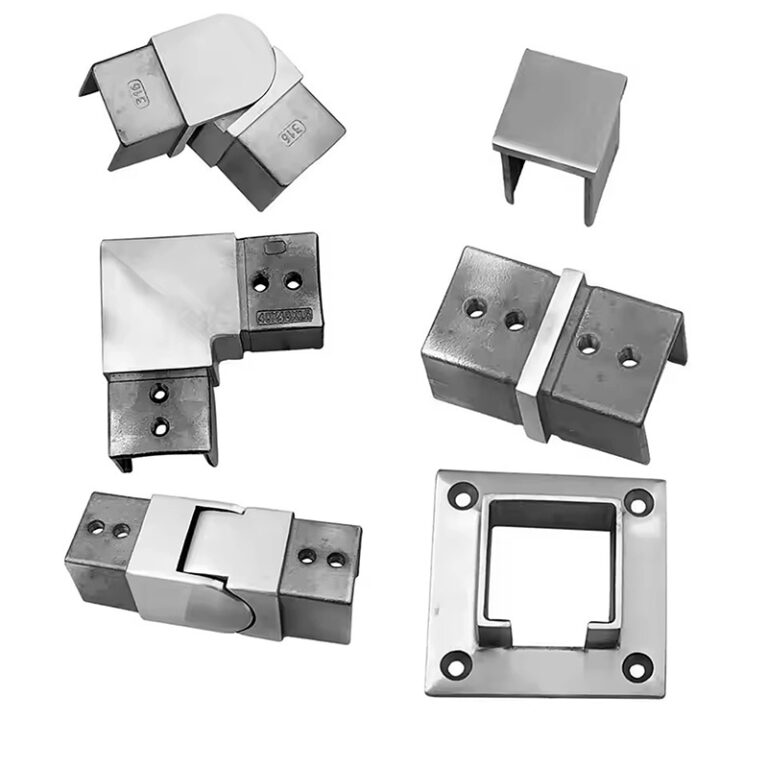

Our square post hanrail brackets include wall-mount, post-to-post, surface-mount, and continuous rail configurations. Standard connection points accommodate 1.5″, 2″, and 2.5″ square posts with compatible handrail diameters from 1.5″ to 2″ round or matching square profiles. Pre-drilled mounting points align with standard spacing requirements, reducing field measurement and cutting time.
Post Components & Hardware Integration
Complete square post systems integrate structural posts, mounting brackets, rail connections, and infill hardware. Posts manufactured from 304 or 316 stainless steel tubing with wall thickness options from 1/8″ to 3/16″ depending on load requirements and span distances. Mounting hardware includes adjustable base plates, wall brackets with reinforcement backing, and connection hardware rated for IBC structural loads.
Glass Panel Integration
Square post bracket fabrication 316L grades accommodate glass railing systems with specialized clamps, gaskets, and adjustment mechanisms. Glass thickness compatibility ranges from 1/4″ tempered to 1/2″ laminated panels. Structural glazing attachments distribute wind and impact loads through the post system while maintaining clean sightlines required in commercial applications.
Cable Railing Compatibility

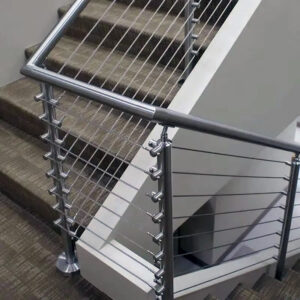

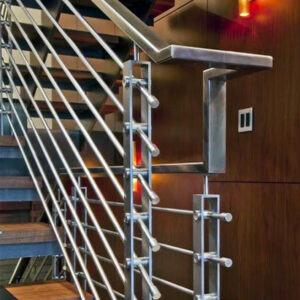

Through-post cable systems utilize square post geometry for enhanced cable tensioning and reduced deflection compared to round posts. Cable entry points machined to precise tolerances prevent cable wear and maintain tension over time. Standard configurations support 1/8″ and 3/32″ cable diameters with spacing compliant to 4″ sphere requirements.
Material Selection & Performance
304 stainless steel provides corrosion resistance for interior and standard exterior applications with cost-effective performance. 316 grades recommended for coastal environments, pool areas, and industrial applications with enhanced chloride resistance. Surface finishes include brushed (#4) for durability and mirror polish for architectural applications requiring high-end appearance.
▶ Get Complete Product Specifications ◀
Technical Specifications
| Material Grade | Applications | Corrosion Resistance | Cost Factor |
|---|---|---|---|
| 304 Stainless | Interior, Standard Exterior | Good | Standard |
| 316 Stainless | Marine, Pool, Industrial | Excellent | 20-30% Premium |
| 316L Low Carbon | Welded Assemblies | Excellent | 25-35% Premium |
| Post Size | Wall Thickness | Load Capacity (lbs) | Span Limit (ft) |
|---|---|---|---|
| 1.5″ Square | 1/8″ | 200 concentrated | 6′ |
| 2″ Square | 1/8″ | 300 concentrated | 8′ |
| 2″ Square | 3/16″ | 450 concentrated | 10′ |
| 2.5″ Square | 3/16″ | 600 concentrated | 12′ |
Real Project Applications & Performance Data
Residential Multi-Unit Development
Recent 240-unit apartment complex utilized standardized square post systems across balconies, stairs, and common areas. Marine grade square post hardware provided consistent appearance while reducing inventory complexity. Installation time averaged 40% faster than custom fabrication alternatives, with standardized connection points eliminating field adjustment delays. Material consistency across 1,200 linear feet maintained architectural specifications while simplifying contractor coordination.
Commercial Office Complex
Downtown office renovation integrated square post glass railing systems on three floors of interior stairs and mezzanine areas. Commercial square post systems met IBC load requirements with engineered connections rated for 50 pounds per linear foot uniform load plus 200-pound concentrated loads. Pre-engineered brackets reduced structural engineering review time and provided clear installation specifications for the general contractor.
Industrial Facility Expansion
Manufacturing plant expansion required railing systems capable of withstanding process environment exposure and meeting OSHA requirements for elevated work platforms. Custom square post brackets fabricated from 316L stainless with enhanced corrosion resistance have performed without maintenance issues over 18 months of continuous operation. Load testing exceeded required safety factors with minimal deflection under operational vibration conditions.
Marine Environment Installation
Coastal resort project utilized 316 stainless square post systems for exterior deck railings exposed to salt spray and frequent cleaning. After two years of service, visual inspection shows no signs of corrosion or structural degradation. Installation followed engineered drawings with standardized connection details that simplified permitting and inspection processes. Maintenance requirements limited to quarterly cleaning with standard stainless steel cleaners.
“Square post systems provide superior structural performance compared to round alternatives while maintaining clean architectural lines.” —Structural Engineering Institute
Performance metrics from completed installations show 85% reduction in callbacks compared to field-fabricated alternatives. Standardized components reduce installation time by an average of 35% while maintaining compliance with applicable building codes and safety standards.
▶ Discuss Your Specific Project Requirements ◀
Installation Support & Technical Assistance
Modular Design Advantages
Pre-engineered components eliminate field welding in most installations, reducing labor costs and improving quality control. Standard connection hardware accommodates typical construction tolerances while maintaining structural integrity. Installation typically requires standard tools including drill, level, torque wrench, and basic measuring equipment.
Engineering & Design Support
Technical staff with 23 years of experience provide installation guidance, load calculations, and code compliance verification. CAD drawings available for standard configurations with custom modifications available through our ODM capabilities. Engineering support includes connection detail development and integration with architectural specifications.
Quality Assurance
Manufacturing quality control includes material certification, dimensional verification, and surface finish inspection. Batch documentation provides traceability for project compliance requirements. Pre-shipment inspection ensures compatibility with project specifications and reduces installation delays.
| Installation Phase | Time Estimate | Crew Size | Special Tools Required |
|---|---|---|---|
| Layout & Marking | 0.5 hrs/100 LF | 2 | Transit, Measuring |
| Post Installation | 1.5 hrs/post | 2-3 | Drill, Anchoring |
| Rail & Bracket | 0.75 hrs/section | 2 | Torque Wrench, Level |
| Final Adjustment | 0.25 hrs/section | 1 | Basic Hand Tools |
▶ Connect with Our Technical Team ◀
Frequently Asked Questions
Q: How do I select between 304 and 316 stainless steel for square post applications?
A: 304 stainless provides adequate corrosion resistance for interior and standard exterior environments at lower cost. Choose 316 grades for coastal areas, pool environments, or industrial applications with chemical exposure. Marine grade square post hardware specifically utilizes 316L for maximum durability in harsh conditions.
Q: What load capacities can square post systems handle compared to round posts?
A: Square geometry provides enhanced structural properties, particularly for lateral loads and cable railing applications. 2″ square posts with 1/8″ wall thickness typically handle equivalent loads to 2.5″ round posts, offering material savings and improved cable tensioning geometry.
Q: Do custom square post brackets require special engineering?
A: Standard configurations meet IBC requirements without additional engineering. Custom applications may require structural calculations depending on load requirements and mounting conditions. Our ODM square post railing components can be engineered for specific applications with appropriate documentation.
Q: How do square post systems integrate with glass railing panels?
A: Square posts provide flat mounting surfaces that simplify glass clamp installation and improve load distribution. Standard glass thicknesses from 1/4″ to 1/2″ accommodate with appropriate hardware selection. Structural glazing calculations follow standard industry practices with enhanced stability from square post geometry.
Q: What maintenance requirements apply to stainless steel square post systems?
A: Routine cleaning with appropriate stainless steel cleaners maintains appearance and performance. 304 grades may require more frequent cleaning in harsh environments, while 316 grades typically need only quarterly maintenance. Avoid chloride-based cleaners and abrasive materials that can damage surface finishes.
Q: Can existing round post systems be converted to square post configurations?
A: Conversion depends on existing foundation and structural conditions. Square post mounting typically requires different anchor patterns and may need structural modifications. Assessment of existing conditions determines feasibility and modification requirements.
Performance Comparison with Alternative Solutions
| System Type | Installation Time | Load Capacity | Maintenance | Cost Factor |
|---|---|---|---|---|
| Square Post (Standard) | Baseline | Excellent | Low | Standard |
| Round Post (Standard) | +15% | Good | Low | -10% |
| Custom Fabrication | +60% | Variable | Medium | +40% |
| Aluminum Systems | -5% | Fair | Medium | -20% |
“Standardized railing components reduce total project cost by 25-35% when installation and maintenance factors are included.” —Construction Cost Engineering Association
Selection criteria should include initial cost, installation complexity, long-term maintenance, and code compliance requirements. Esang Metal provides technical consultation to help determine optimal solutions based on specific project parameters and performance requirements.
▶ Get Project-Specific Recommendations ◀
Square post hanrail brackets represent proven technology backed by 23 years of manufacturing experience and continuous improvement based on contractor feedback. Technical support, quality materials, and standardized components combine to deliver reliable performance that meets project schedules and budget requirements while maintaining compliance with applicable codes and standards.
