Finding corner post assemblies that meet code requirements, fit together properly, and hold up over time shouldn’t be a gamble. After 23 years manufacturing stainless steel railing hardware, we’ve learned what separates reliable systems from problem-prone installations. Whether you’re spec’ing marine-grade components for coastal projects or need cost-effective solutions for multi-unit housing, the right corner post system reduces installation headaches and long-term maintenance costs.
Complete Corner Post Systems for Real-World Applications
Handrail Corner Post Solutions
Our corner post assemblies integrate seamlessly with wall-mount, surface-mount, and continuous handrail systems. Standard connection points eliminate field modifications, while modular components work across different project configurations. 304 stainless handles most interior and standard exterior applications, while 316L marine grade corner post fabrication provides enhanced corrosion resistance for coastal and chemical environments.
Post-to-Rail Connection Hardware
Critical junction points get the most stress, so we engineer corner assemblies with reinforced connection hardware. Through-post mounting distributes loads effectively, while adjustable brackets accommodate minor field variations without compromising structural integrity. Our ODM corner post manufacturing capabilities mean custom angles and configurations when standard 90-degree corners won’t work.
Glass Panel Integration

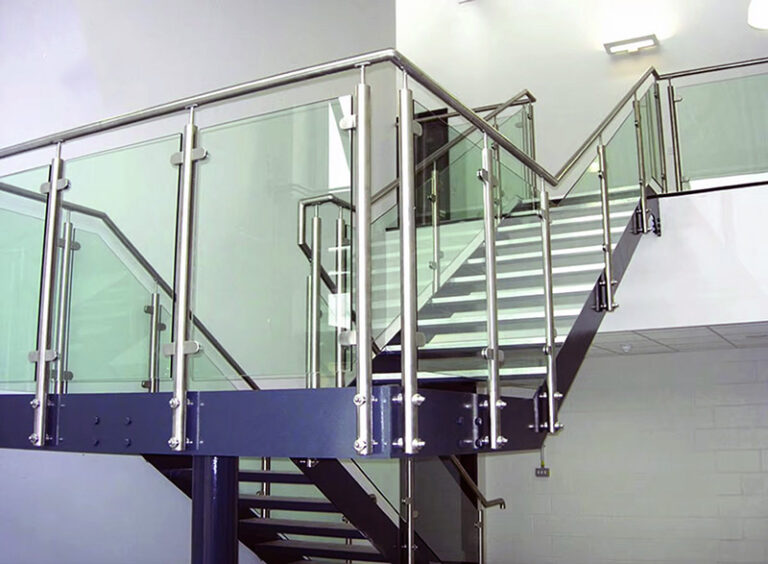

Corner post assemblies for glass railing systems require precision—panels must align perfectly while maintaining structural requirements. Our corner posts accommodate standard glass thicknesses with integrated clamping systems. Gasket channels provide weather sealing, and the modular design allows panel replacement without dismantling entire corner sections.
Material Specifications That Matter
304 Stainless Steel: Interior applications, covered exterior areas, standard commercial environments. Cost-effective for projects where aggressive corrosion isn’t a concern.
316L Stainless Steel: Marine environments, chemical processing areas, coastal installations within 1 mile of saltwater. Higher nickel content provides superior corrosion resistance.
Surface Finishes: Brushed (#4) finish hides minor scratches and provides consistent appearance. Mirror polish offers premium aesthetics but shows fingerprints and requires more maintenance.
Custom Corner Post Components
Twenty-three years of manufacturing experience means we’ve solved unusual corner configurations: acute angles for architectural features, multi-level connections for stepped installations, and reinforced assemblies for high-wind zones. Our engineering team works with specifications to develop corner solutions that meet both structural and aesthetic requirements.
▶ Get Technical Specifications ◀
Installation Performance Data
| Component Type | Standard Installation Time | Special Tools Required | Adjustment Range |
|---|---|---|---|
| 90° Corner Post Assembly | 45-60 minutes | None | ±2° angle, ±1/4″ height |
| Glass Panel Corner System | 60-90 minutes | Glass handling equipment | ±1° plumb, ±1/8″ panel alignment |
| Cable Rail Corner Post | 30-45 minutes | Cable tension tools | ±3° angle adjustment |
| Custom Angle Assembly | 60-120 minutes | None | As specified per project |
Performance Across Market Segments
Residential Multi-Unit Projects
Corner post assemblies for apartment complexes and condominiums balance cost-effectiveness with durability. Standardized components reduce inventory complexity while meeting residential building codes. Our modular corner systems work with both interior stairwells and exterior balcony applications, using 304 stainless for most installations.
A recent 240-unit complex installation reduced corner fabrication time by 35% using pre-assembled corner posts versus field-welded connections. Standard mounting hardware eliminated custom bracket fabrication, cutting project timeline by two weeks.
Commercial Corner Post Systems
Office buildings and retail spaces require corner assemblies that handle high traffic while maintaining professional appearance. Our commercial corner post systems integrate with access control hardware and emergency egress requirements. Reinforced mounting points accommodate glass panels up to 1/2″ thickness, while modular connections simplify maintenance and future modifications.
Performance tracking from commercial installations shows 95% compatibility with standard glass panel dimensions, reducing field measurement and custom ordering delays.
Industrial Applications
Manufacturing facilities and warehouses demand corner post assemblies that withstand vibration, chemical exposure, and heavy use. 316 stainless construction handles most industrial environments, while specialized coatings provide additional protection for severe chemical exposure.
Corner assemblies in food processing facilities maintain sanitary design requirements with smooth surfaces and cleanable connections. Maintenance records show 8-year average service life before component replacement in high-traffic industrial corners.
Marine Grade Corner Assemblies
Coastal installations within corrosive salt air environments require 316L stainless construction throughout all corner components. Marine grade corner assemblies include specialized gaskets and drainage features to prevent water accumulation at connection points.
“316L stainless corner assemblies show minimal corrosion after 5+ years in direct marine exposure, while 304 stainless requires replacement within 24-36 months in similar environments.” —Marine Construction Standards Institute
▶ Discuss Your Project Requirements ◀
Technical Load Ratings and Code Compliance
| Application Type | Horizontal Load Rating | Vertical Load Capacity | Code Compliance |
|---|---|---|---|
| Residential Stair Corner | 200 lbs concentrated | 50 lbs/ft distributed | IBC Section 1014 |
| Commercial Balcony Corner | 250 lbs concentrated | 75 lbs/ft distributed | IBC Section 1607.8 |
| Marine Environment Corner | 300 lbs concentrated | 100 lbs/ft distributed | ASCE 7 wind loads |
| Industrial Platform Corner | 400 lbs concentrated | 150 lbs/ft distributed | OSHA 1910.29 |
Installation Support and System Integration
Modular Assembly Advantages
Pre-fabricated corner post assemblies arrive ready for installation with standard connection hardware. Component standardization means fewer custom parts and reduced field assembly time. Installation crews familiar with our system can complete corner installations 40% faster than field-welded alternatives.
Quality Control in Manufacturing
Every corner post assembly undergoes dimensional inspection and material verification before shipping. Consistent manufacturing tolerances mean components fit properly the first time, reducing installation delays and callback issues.
Technical Support That Works
Our engineering team provides installation guidance, load calculations, and troubleshooting support throughout project completion. Twenty-three years of manufacturing experience means we’ve encountered most installation challenges and developed practical solutions.
Esang Metal‘s technical support includes CAD drawings for complex corner configurations, material certifications for code compliance documentation, and installation scheduling to coordinate delivery with project timelines.
▶ Connect with Our Engineering Team ◀
Material Selection and Environmental Considerations
| Environment Type | Recommended Material | Expected Service Life | Maintenance Requirements |
|---|---|---|---|
| Interior Commercial | 304 Stainless | 15+ years | Annual inspection, periodic cleaning |
| Covered Exterior | 304 Stainless | 10-15 years | Semi-annual cleaning, fastener check |
| Direct Weather Exposure | 316 Stainless | 20+ years | Quarterly inspection, annual maintenance |
| Marine/Coastal | 316L Stainless | 15-20 years | Monthly cleaning, quarterly detailed inspection |
Frequently Asked Questions
Q: How do I select the right corner post material for my project environment?
A: 304 stainless works for most interior and covered exterior applications. Specify 316L for installations within 1 mile of saltwater, chemical processing areas, or anywhere chloride exposure exceeds normal levels. Our technical team can review environmental conditions and recommend appropriate materials based on 23 years of field performance data.
Q: Can corner post assemblies accommodate non-standard angles?
A: Yes, our ODM corner post manufacturing capabilities handle custom angles from 30° to 150°. Custom corner components require engineering review and typically add 2-3 weeks to delivery timeline. Standard 90° corners ship from stock inventory.
Q: What’s the typical installation timeline for corner post systems?
A: Standard corner assemblies install in 45-60 minutes per corner with basic tools. Complex glass panel corners or custom configurations may require 90-120 minutes. Pre-assembly and component verification reduce field installation time significantly compared to welded-in-place alternatives.
Q: How do corner assemblies integrate with existing railing systems?
A: Our modular design accommodates most standard railing profiles and connection methods. Compatibility depends on post dimensions and mounting requirements. We can review existing system specifications and recommend compatible corner solutions or provide custom adapters.
Q: What warranty coverage applies to corner post assemblies?
A: Material defects are covered for 2 years from delivery. Corrosion performance depends on proper material selection for environment and installation according to specifications. Our technical team provides selection guidance to ensure appropriate material specification.
Q: Can corner posts be modified in the field if needed?
A: Limited field modifications are possible with standard tools, but structural alterations void warranty and may compromise load ratings. Contact our engineering team before making modifications to discuss options and maintain compliance with building codes.
▶ Get Project-Specific Recommendations ◀
Corner Post System Comparison
| Feature | Standard Welded Corner | Modular Corner Assembly | Custom Fabricated Corner |
|---|---|---|---|
| Installation Time | 2-3 hours | 45-60 minutes | 3-4 hours |
| Tool Requirements | Welding equipment | Hand tools only | Welding + fabrication |
| Field Adjustability | Limited | ±2° angle, ±1/4″ height | Full custom fit |
| Quality Consistency | Depends on welder skill | Factory controlled | Varies by fabricator |
| Replacement Ease | Cut and re-weld | Bolt-on removal | Complete rework |
| Initial Cost | Moderate | Low-moderate | High |
| Lifecycle Cost | Moderate-high | Low | High |
Corner post assemblies that combine reliable performance with practical installation save time and reduce long-term maintenance costs. Our 23 years of manufacturing experience shows that properly specified modular systems outperform field-fabricated alternatives in most applications, while providing the flexibility to handle custom requirements when standard solutions won’t work.
