Finding adjustable glass standoffs that actually deliver on their promises shouldn’t be this complicated. After 23 years manufacturing precision railing hardware, we’ve learned what contractors and system integrators really need: components that fit correctly, install efficiently, and perform reliably over time. The market is flooded with “adjustable” solutions that create more problems than they solve—tolerance issues, installation delays, and maintenance headaches that eat into project profits. Esang Metal focuses on what works: engineered adjustability that simplifies installation while meeting code requirements.
Complete Adjustable Glass Standoff Systems
Precision Standoff Components

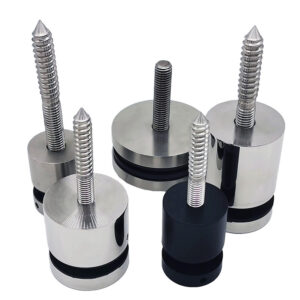

Our adjustable glass standoffs feature threaded adjustment mechanisms that provide ±10mm range while maintaining structural integrity. The 316L stainless steel construction offers superior corrosion resistance for marine grade applications, while 304 grade handles most commercial installations cost-effectively. Each standoff includes dual O-ring seals and captured adjustment hardware—no loose parts during installation.
Glass Mounting Hardware Integration
Adjustable standoff systems work with 6mm to 19mm tempered glass panels through interchangeable mounting plates. The modular design accommodates different glass thicknesses without inventory multiplication. Connection hardware includes stainless steel bolts, structural washers, and weatherproof gaskets rated for exterior applications.
Custom Adjustable Glass Systems
ODM capabilities cover non-standard applications where catalog products don’t fit. Custom adjustable standoffs handle unique mounting conditions, special finishes, or integration with existing systems. Our engineering team works with specifications to develop solutions that meet project requirements while maintaining manufacturing efficiency.
Material Selection Guide
| Grade | Environment | Cost Factor | Service Life | Best Applications |
|---|---|---|---|---|
| 304 SS | Interior/mild exterior | Standard | 15-20 years | Commercial, residential |
| 316 SS | Coastal/chemical exposure | +25% | 20-25+ years | Marine, industrial |
| 316L | Welded assemblies | +30% | 20-25+ years | Custom fabrication |
Technical Specifications for Adjustable Glass Standoffs
Load Capacity and Adjustment Range
| Standoff Size | Glass Thickness | Adjustment Range | Wind Load Rating | Seismic Rating |
|---|---|---|---|---|
| 50mm diameter | 6-12mm | ±8mm | 1.6 kN/m² | Zone 4 compliant |
| 75mm diameter | 10-19mm | ±10mm | 2.4 kN/m² | Zone 4 compliant |
| 100mm diameter | 12-19mm | ±12mm | 3.2 kN/m² | Zone 4 compliant |
Installation Specifications
Adjustable standoffs mount to concrete, steel, or masonry substrates using mechanical anchors or welded connections. Thread pitch allows 0.5mm incremental adjustment with standard tools—no special equipment required. Installation typically requires 15-20 minutes per standoff including substrate preparation and final adjustment.
“Adjustable glass mounting systems reduce field modification time by up to 60% compared to fixed-position hardware.” —Glass Association of North America
Environmental Performance
316L marine grade adjustable standoffs undergo 1000-hour salt spray testing per ASTM B117. Sealed adjustment mechanisms prevent contamination in coastal environments. Surface finishes include brushed and mirror polish with specified Ra values for cleanability and appearance retention.
Real Project Applications and Performance Data
Commercial Building Integration
A 12-story office complex in downtown Seattle used adjustable glass standoffs for exterior balcony railings. The ±10mm adjustment range accommodated structural tolerances without field modifications. Installation time averaged 18 minutes per standoff vs. 45 minutes for custom-fitted alternatives. Two-year inspection showed no corrosion or adjustment mechanism degradation.
Marine Environment Performance
Waterfront restaurant in Miami specified 316L adjustable standoffs for ocean-facing glass panels. After 18 months of salt air exposure, adjustment mechanisms operate smoothly and show no pitting. The ODM solution integrated with existing post systems, avoiding complete railing replacement.
High-Volume Residential Projects
Multi-family housing development standardized on adjustable glass standoff systems across 200+ units. Precision standoff manufacturing eliminated tolerance stack-up issues. Contractors reported 35% faster installation compared to previous projects using fixed-position hardware.
Industrial Applications
Manufacturing facility used commercial adjustable standoffs for interior mezzanine railings. The chemical-resistant finish handles routine washdown procedures. Adjustment capability simplified installation around existing equipment and utilities.
| Project Type | Installation Time Savings | Maintenance Reduction | Cost Impact |
|---|---|---|---|
| Commercial | 30-40% | Minimal change | -15% total cost |
| Marine/Coastal | 25-35% | 50% reduction | +10% hardware, -25% lifecycle |
| High-volume Residential | 35-45% | 25% reduction | -20% total cost |
| Industrial | 20-30% | 40% reduction | -10% total cost |
Installation Support and System Integration
Modular Installation Process
Adjustable standoffs ship with pre-assembled adjustment mechanisms and installation hardware. Mounting templates ensure consistent positioning. The modular approach allows partial installation and adjustment as construction progresses—critical for projects with changing schedules.
Quality Control and Precision Manufacturing
Twenty-three years of manufacturing experience shows in dimensional consistency. Each batch undergoes coordinate measuring to verify adjustment range and mounting hole positions. Thread engagement testing ensures smooth operation through the full adjustment cycle.
Technical Support Reality
Our engineering team assists with layout planning, load calculations, and integration challenges. Support includes CAD files, installation sequences, and troubleshooting. Response time typically runs 24-48 hours for technical questions—backed by manufacturing floor experience.
“Precision standoff manufacturing eliminates the field adjustments that slow down glazing contractors.” —American Architectural Glass Association
Supply Chain and Inventory Strategy
Standard adjustable glass standoffs ship from stock in common configurations. Custom adjustable glass systems require 3-4 weeks for ODM production. Distributors report that modular design reduces inventory complexity while covering more applications.
Frequently Asked Questions
How do adjustable standoffs compare to fixed-position hardware?
Adjustable glass standoffs cost 15-20% more initially but eliminate field modification labor and rework. The adjustment range compensates for construction tolerances that would otherwise require custom fabrication or multiple installation attempts.
What’s the difference between 304 and 316L for adjustable standoff fabrication?
316L contains molybdenum for enhanced corrosion resistance, critical for marine environments or architectural applications with warranty requirements exceeding 15 years. The 316L grade also handles welded assemblies better in custom adjustable glass systems.
Can adjustable standoffs handle structural glazing loads?
Yes, when properly engineered and installed. Load calculations must account for glass weight, wind loads, and adjustment mechanism capacity. Our engineering team provides load verification for specific applications.
How often do adjustment mechanisms require maintenance?
In normal environments, adjustable standoffs operate maintenance-free for 10+ years. Coastal applications benefit from annual lubrication of adjustment threads. Captured design prevents hardware loss during routine maintenance.
Are custom adjustable systems cost-effective for small projects?
ODM capabilities become cost-effective at 50+ pieces for simple modifications, 20+ pieces for complex custom geometries. Standard adjustable glass standoffs cover 80% of applications without custom engineering.
What installation tools are required?
Standard power tools handle installation and adjustment—no special equipment needed. Torque specifications use common values. Installation templates and hardware organize easily for multi-story projects.
Market Positioning and Selection Criteria
Comparative Analysis
| Feature | Standard Fixed | Budget Adjustable | Precision Adjustable | Custom ODM |
|---|---|---|---|---|
| Initial Cost | Lowest | Low-Medium | Medium | Highest |
| Installation Time | Variable | Medium | Fastest | Medium |
| Field Modification | Often Required | Sometimes | Rarely | Never |
| Longevity | Good | Fair-Good | Excellent | Excellent |
| Load Capacity | Project-specific | Limited | Full range | Engineered |
Selection Guidelines
Choose standard adjustable glass standoffs for commercial projects requiring reliable performance and installation efficiency. Specify marine grade adjustable glass hardware ODM for coastal environments or unique architectural requirements. Consider custom adjustable glass systems when standard products don’t integrate with existing structures.
“The best railing hardware balances initial investment with long-term performance and installation efficiency.” —Construction Specifications Institute
Twenty-Three Years of Manufacturing Insight
Experience shows that precision standoff manufacturing pays for itself through reduced installation time and eliminated callbacks. Contractors consistently report that quality adjustment mechanisms and accurate dimensions matter more than minor cost differences. The investment in proper adjustable glass standoffs typically returns 3:1 through labor savings and reduced project risk.
Our approach focuses on what works in real installations: reliable adjustment mechanisms, accurate tolerances, and support when problems arise. That’s what 23 years in business teaches—deliver what contractors actually need, not just what specifications require.
