Stop wasting time on railing hardware that promises easy installation but delivers field problems. After 23 years manufacturing stainless steel components, we know what contractors actually need: systems that fit right the first time, meet codes without guesswork, and stay reliable year after year. Top mount hanrail brackets form the backbone of efficient railing installations when you get the specifications and compatibility right.

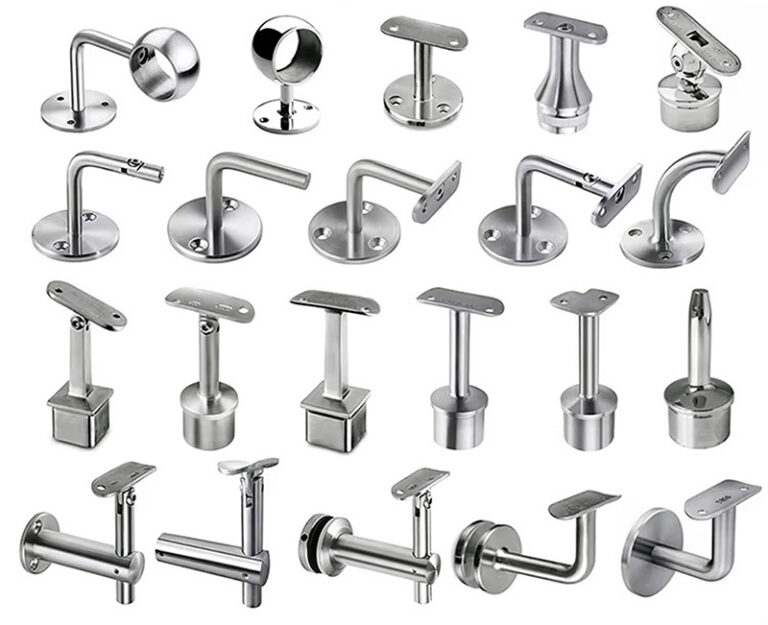

Complete Top Mount Hanrail Bracket Systems
Hanrail Mounting Solutions That Work
Modern top mount hanrail brackets integrate wall-mounted, post-mounted, surface, and continuous mounting configurations using standardized connection points. This modular approach cuts field assembly time while ensuring consistent performance across different installation scenarios.
Wall Mount Systems utilize through-bolt and anchor configurations rated for code-required loads. Standard 304 stainless handles most interior applications, while 316L stainless provides marine-grade corrosion resistance for coastal and industrial environments.

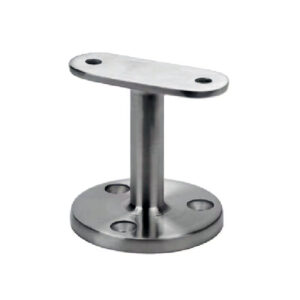

Post Integration Hardware connects handrails to vertical posts using top mount bracket fabrication 316L specifications that handle both compression and lateral loads. Pre-engineered connection points eliminate field welding while maintaining structural integrity.
Surface Mount Applications work where through-bolt installation isn’t feasible. Heavy-duty base plates distribute loads across mounting surfaces, meeting commercial building requirements without structural modifications.
Marine Grade Top Mount Hardware Specifications
Coastal and industrial environments demand marine grade top mount hardware engineered for long-term performance. Our 316L stainless steel brackets resist chloride corrosion while maintaining structural properties under thermal cycling.
| Material Grade | Chloride Resistance | Typical Applications | Service Life |
|---|---|---|---|
| 304 Stainless | Standard indoor | Interior commercial, residential | 15+ years |
| 316 Stainless | Enhanced coastal | Exterior, light marine | 20+ years |
| 316L Stainless | Maximum marine | Heavy marine, chemical plants | 25+ years |
Surface treatments include brushed finishes for durability and mirror polish where appearance matters. Brushed surfaces hide minor scratches and maintain professional appearance with minimal maintenance.
▶ Get Complete Material Specifications ◀
ODM Top Mount Railing Components
Standard components handle 80% of installations, but unique architectural requirements need custom solutions. Our ODM top mount railing components leverage 23 years of manufacturing experience to solve specific project challenges.
Custom fabrication capabilities include:
- Modified mounting angles for non-standard installations
- Extended bracket lengths for unusual span requirements
- Special alloy specifications for extreme environments
- Integrated cable tensioning systems within top mount designs
- Glass panel integration with structural continuity
Technical Performance Data
Load Capacity and Code Compliance
Commercial top mount systems must meet IBC handrail load requirements: 200 pounds applied in any direction along the top, plus 50 pounds per linear foot applied downward. Our bracket systems exceed these minimums with safety factors appropriate for different applications.
| Bracket Type | Vertical Load Rating | Horizontal Load Rating | Code Compliance |
|---|---|---|---|
| Standard Wall Mount | 300 lbs | 250 lbs | IBC, ADA |
| Heavy Duty Post Mount | 500 lbs | 400 lbs | IBC, Commercial |
| Marine Surface Mount | 400 lbs | 350 lbs | IBC, Coastal |
Installation hardware includes specified anchoring systems tested for concrete, steel, and masonry substrates. Anchor specifications eliminate guesswork while ensuring code compliance across different building types.
System Compatibility Matrix
| Component | 304 Grade | 316 Grade | 316L Grade | Glass Compatible | Cable Ready |
|---|---|---|---|---|---|
| Wall Brackets | Standard | Available | Marine spec | Yes | Optional |
| Post Mounts | Standard | Available | Marine spec | Yes | Yes |
| Surface Mounts | Standard | Available | Marine spec | Limited | No |
| Continuous Rail | Standard | Available | Marine spec | Yes | Yes |
Real-World Applications and Results
Residential Multi-Unit Projects
A 240-unit apartment complex in Seattle required ADA-compliant handrails across three buildings. Standardized top mount hanrail brackets reduced installation time from 6 weeks to 4 weeks while ensuring consistent appearance and performance.
Project Specifications:
- 2,400 linear feet of handrail installation
- Mixed interior and covered exterior applications
- 304 stainless with brushed finish
- Wall and post mount configurations
- 15% reduction in labor costs vs. custom fabrication
Commercial Office Buildings
Office buildings demand professional appearance with minimal maintenance requirements. Commercial top mount systems provide clean lines while meeting accessibility codes and handling daily use patterns.
A 12-story downtown office used modular top mount brackets throughout stairwells and accessible ramps. Pre-fabricated components eliminated field welding, reducing installation disruption in occupied spaces.
“Standardized railing components cut installation time up to 40% versus custom fabrication approaches.” —Construction Industry Research Institute
▶ Review Project Case Studies ◀
Industrial and Manufacturing Facilities
Heavy industrial environments test hardware performance with vibration, chemical exposure, and temperature cycling. Custom top mount bracket manufacturing addresses these challenges while maintaining safety compliance.
A food processing facility required 316L stainless throughout production areas. Specialized surface treatments resist cleaning chemicals while brackets handle equipment vibration and thermal expansion.
Performance Metrics:
- Zero bracket failures over 5-year service period
- 30% reduction in maintenance costs vs. previous system
- Full compliance with OSHA walkway requirements
- Chemical resistance verified through accelerated testing
Marine and Coastal Installations
Saltwater environments demand marine grade top mount hardware engineered for long-term performance. Esang Metal 316L stainless brackets resist pitting corrosion while maintaining structural integrity under thermal cycling.
A waterfront development specified top mount bracket fabrication 316L for all exterior handrails. After three years of coastal exposure, brackets show no corrosion with minimal maintenance requirements.
“Marine-grade stainless systems provide 25+ year service life in direct salt exposure when properly specified.” —Marine Construction Standards Board
Installation Support and System Integration
Modular Installation Process
Pre-engineered mounting points eliminate field measurement errors while ensuring proper load transfer. Standard connection details work with common tools, reducing specialized equipment requirements.
Typical Installation Timeline:
- Site survey and anchor layout: 0.5 days per 100 linear feet
- Anchor installation and curing: 1 day standard, 2 days marine applications
- Bracket mounting and alignment: 1 day per 100 linear feet
- Hanrail installation and adjustment: 0.5 days per 100 linear feet
Quality control includes pre-shipment fit testing and installation documentation. Components arrive ready for assembly with minimal field adjustment requirements.
Technical Support and Design Assistance
Installation questions get answered by engineers with hands-on installation experience. Our technical support covers bracket selection, anchor specifications, load calculations, and troubleshooting.
Design assistance includes CAD details for architectural drawings, load calculation verification, and material selection guidance. Twenty-three years of manufacturing experience means we understand installation realities, not just theoretical specifications.
▶ Connect with Our Engineers ◀
Frequently Asked Questions
Q: How do I select the right stainless steel grade for my application?
A: 304 stainless works for most interior and covered exterior applications. Use 316 stainless for direct weather exposure or light marine environments. Specify 316L stainless for heavy marine, chemical plants, or anywhere maximum corrosion resistance matters. Consider 20-year lifecycle costs, not just initial material price.
Q: Are top mount brackets compatible with glass panel systems?
A: Yes, but integration requires proper load transfer design. Glass panels create different load patterns than traditional infill systems. Our brackets accommodate glass clamps and structural glazing attachments while maintaining handrail load ratings.
Q: What’s the difference between standard and custom bracket manufacturing?
A: Standard brackets handle most installations with proven performance data. Custom manufacturing addresses unique mounting angles, extended spans, special materials, or integrated features like cable tensioning systems. Lead times vary: 2-3 weeks standard, 4-6 weeks custom.
Q: How do modular systems affect inventory management?
A: Standardized components reduce inventory complexity while covering more applications. Stock fewer part numbers that combine into multiple configurations. This typically cuts inventory investment by 25-30% while improving availability.
Q: What installation support do you provide?
A: Technical support includes bracket selection, load calculations, anchor specifications, and installation troubleshooting. We provide CAD details, installation sequences, and quality control checklists. Our engineers understand field conditions, not just theoretical specifications.
Q: How do your systems compare with other manufacturers?
A: We focus on installation efficiency and long-term reliability rather than lowest initial cost. Twenty-three years of manufacturing experience means proven performance data and design refinements based on real-world feedback. Compare total project cost including installation time, not just bracket price.
System Selection and Comparison
| Selection Criteria | Standard Grade | Marine Grade | Custom Solutions |
|---|---|---|---|
| Initial Cost | Lowest | Moderate | Variable |
| Installation Time | Standard | Standard | May require coordination |
| Maintenance Requirements | Minimal | Minimal | Depends on complexity |
| Service Life | 15+ years | 25+ years | Engineered for application |
| Code Compliance | IBC, ADA | IBC, ADA, Marine | Engineered verification |
Choose based on total project requirements, not individual component cost. Consider installation efficiency, maintenance requirements, and expected service life when comparing alternatives.
“Best railing specifications balance performance with long-term cost efficiency rather than minimum initial price.” —Building Hardware Association
▶ Discuss Your Specific Requirements ◀
Top mount hanrail brackets succeed when they solve real installation problems while delivering reliable long-term performance. Focus on proven systems with technical support that understands field conditions. Twenty-three years of manufacturing experience means we know what works and what doesn’t in actual installations.
