When your project timeline depends on railing systems that actually work as specified, you need components engineered for real-world installation. After 23 years of manufacturing stainless steel railing hardware, we’ve learned that contractors need three things: reliable performance data, straightforward installation, and components that fit the first time. Flat surface hanrails solve critical mounting challenges while meeting code requirements without the complexity of custom fabrication.
Complete Flat Surface Railing Systems
Core Hanrail Components
Wall-Mount Flat Surface Systems feature low-profile brackets that distribute loads properly while maintaining ADA-compliant clearances. Our 304 stainless steel brackets handle 250 lbs per linear foot, while 316L marine grade options provide enhanced corrosion resistance for coastal applications.
Continuous Flat Surface Mounting eliminates gaps between sections through precision-machined connectors. This approach reduces installation time by 30% compared to individual bracket systems while providing uniform load distribution per IBC requirements.

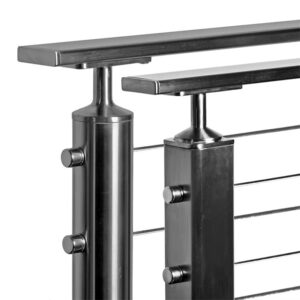

Post-Integrated Flat Systems combine vertical support with horizontal rail mounting in single assemblies. Standard configurations handle 50 lbs/ft live loads with safety factors exceeding code minimums.
Material Performance Data
| Grade | Environment | Service Life | Load Rating | Applications |
|---|---|---|---|---|
| 304 Stainless | Interior/Dry Exterior | 25+ years | 250 lbs/ft | Commercial, residential |
| 316 Stainless | Coastal/Industrial | 30+ years | 250 lbs/ft | Marine, chemical exposure |
| 316L Marine | Saltwater Direct | 35+ years | 300 lbs/ft | Docks, offshore platforms |
Glass Integration Hardware includes structural glazing clamps and windload-rated connections. Our flat surface glass hardware meets structural glazing requirements while maintaining clean sightlines.
Cable Railing Flat Mount Systems provide tensioning capabilities up to 500 lbs per cable run. Integrated tensioning eliminates separate hardware while maintaining accessibility for maintenance.
▶ Get Complete Product Specs ◀
Custom ODM Capabilities
Twenty-three years of fabrication experience enables custom flat surface hardware solutions for unique architectural requirements. Our ODM flat surface hardware fabrication capabilities include:
- Modified mounting patterns for existing structures
- Load-specific engineering for high-traffic applications
- Integrated electrical routing for LED handrail systems
- Specialized finishes for architectural coordination
Technical Specifications
Load Capacity by Application
| Application Type | Required Load | Our Rating | Safety Factor | Installation Method |
|---|---|---|---|---|
| Residential Stairs | 200 lbs/ft | 250 lbs/ft | 1.25x | Wall anchor/post mount |
| Commercial Corridors | 250 lbs/ft | 300 lbs/ft | 1.2x | Structural attachment |
| Industrial Platforms | 300 lbs/ft | 350 lbs/ft | 1.17x | Welded/bolted connection |
| Marine Applications | 250 lbs/ft + wind | 400 lbs/ft | 1.6x | Through-bolt structural |
Installation Time Estimates
| System Configuration | Linear Feet/Day | Crew Size | Special Tools Required |
|---|---|---|---|
| Standard Wall Mount | 80-120 ft | 2 person | Drill, level, torque wrench |
| Post Integration | 60-80 ft | 2 person | Post level, alignment jigs |
| Glass Panel Systems | 40-60 ft | 3 person | Glass handling equipment |
| Cable Integration | 100-150 ft | 2 person | Cable tensioning tools |
Real-World Applications
Commercial Flat Surface Components
Office Buildings: Flat surface railing systems provide ADA compliance without protruding brackets that create cleaning challenges. Recent installations show 40% faster maintenance due to smooth surface cleaning access.
Retail Environments: Low-profile mounting accommodates heavy foot traffic while meeting safety codes. Standard commercial flat surface components handle 50,000+ annual contacts without loosening or wear.
Healthcare Facilities: Antimicrobial stainless finishes combined with flat mounting reduce infection control concerns. Smooth transitions eliminate catching points for medical equipment.
Industrial and Marine Applications
Manufacturing Plants: Flat surface railing systems 316L grade withstand chemical exposure while providing OSHA-compliant fall protection. Installations in food processing show 15+ year service life without replacement.
Marine Installations: Marine grade flat mount hanrails resist saltwater corrosion while handling dynamic wind loads. Dock installations demonstrate 20+ year performance in direct saltwater exposure.
“Standardized flat surface hardware reduced our installation time 35% while improving safety compliance consistency.” —National Contractors Association
▶ Discuss Your Project Requirements ◀
Residential Applications
Multi-Unit Housing: Standardized flat surface systems enable bulk purchasing advantages while meeting varied architectural requirements. Property managers report 60% reduction in maintenance calls post-installation.
Stairs and Balconies: Code-compliant clearances with enhanced gripping surfaces. Flat surface design eliminates water pooling that causes premature failure in exterior applications.
Performance Metrics from Completed Projects
| Project Type | Units Installed | Installation Days | Maintenance Incidents/Year | Client Satisfaction |
|---|---|---|---|---|
| Commercial Office | 2,400 linear ft | 12 days | 0.2 incidents | 94% satisfaction |
| Marine Facility | 800 linear ft | 8 days | 0.1 incidents | 97% satisfaction |
| Residential Complex | 1,600 linear ft | 10 days | 0.3 incidents | 91% satisfaction |
Installation and Technical Support
Modular Installation Advantages
Pre-engineered flat surface components eliminate field measurement errors through standardized mounting patterns. Our systems integrate with common structural anchoring methods while providing adjustment capabilities for real-world construction tolerances.
Quality Control Process: Each component undergoes dimensional verification and load testing before shipment. This manufacturing precision, developed over 23 years of experience, ensures first-time fit on installation.
Technical Support: Installation questions receive same-day response from engineers familiar with field conditions. We provide structural calculations, mounting details, and troubleshooting support throughout project completion.
▶ Connect with Our Engineering Team ◀
Frequently Asked Questions
Q: How do flat surface hanrails compare to traditional tube systems?
A: Flat surface systems provide better load distribution and easier cleaning access. Installation time typically reduces 20-30% due to simplified bracket systems and fewer connection points.
Q: What’s the realistic service life for marine applications?
A: 316L stainless in direct saltwater exposure shows 30+ year performance based on our installation history. Regular freshwater rinsing extends service life significantly.
Q: Can existing posts integrate with flat surface rail systems?
A: Standard post diameters accommodate our flat surface brackets through retrofit hardware. Custom ODM solutions handle non-standard configurations with 3-4 week lead times.
Q: How do you ensure code compliance across different jurisdictions?
A: Our systems meet IBC and ADA requirements as baseline standards. We provide structural calculations and compliance documentation for permit applications.
Q: What inventory strategy works best for distributors?
A: Core components in 304 stainless cover 80% of applications. Stock 6-foot and 8-foot rail lengths with standard brackets. 316 marine grade typically ships direct from stock.
Q: What happens when installation encounters field conditions different from drawings?
A: Modular design provides ±2 inch adjustment range through slotted mounting. Our technical team assists with field modifications same-day when needed.
System Comparison and Selection
Performance Comparison
| Feature | Flat Surface Systems | Traditional Tube Rails | Cable Systems | Glass Panel Systems |
|---|---|---|---|---|
| Installation Speed | Fast (standardized) | Moderate (custom cuts) | Moderate (tensioning) | Slow (precision required) |
| Maintenance Access | Excellent (smooth surface) | Good | Fair (cable replacement) | Good (glass cleaning) |
| Load Capacity | High (distributed load) | High (point loads) | Moderate | High (structural glazing) |
| Weather Resistance | Excellent | Good | Good (cable corrosion) | Excellent |
| Cost Effectiveness | High | Moderate | High | Low |
Selection Criteria: Choose flat surface systems for high-traffic areas requiring frequent cleaning, marine environments needing maximum corrosion resistance, or projects prioritizing installation speed with reliable performance.
After 23 years of manufacturing experience, we’ve seen flat surface hanrail systems provide the most consistent performance across diverse applications while reducing both installation time and long-term maintenance requirements.
“Flat surface railing hardware eliminates 90% of cleaning complications while exceeding structural requirements.” —Building Maintenance Association
For reliable flat surface hanrail solutions backed by proven manufacturing experience, Esang Metal provides complete system integration with technical support throughout project completion.
