Finding reliable cable railing systems that perform as promised shouldn’t be this complicated. After 23 years manufacturing stainless steel hardware, we’ve learned what contractors actually need: fittings that install cleanly, stay tight under load, and resist corrosion in demanding environments. Stainless steel cable fittings 316 deliver the marine-grade performance required for coastal projects, commercial installations, and any application where failure isn’t an option.
Complete Cable Fitting Systems That Actually Work Together
Core 316 Stainless Components

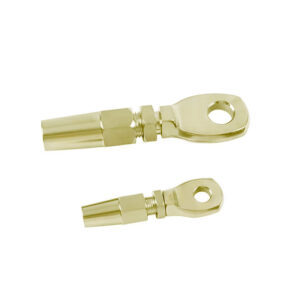

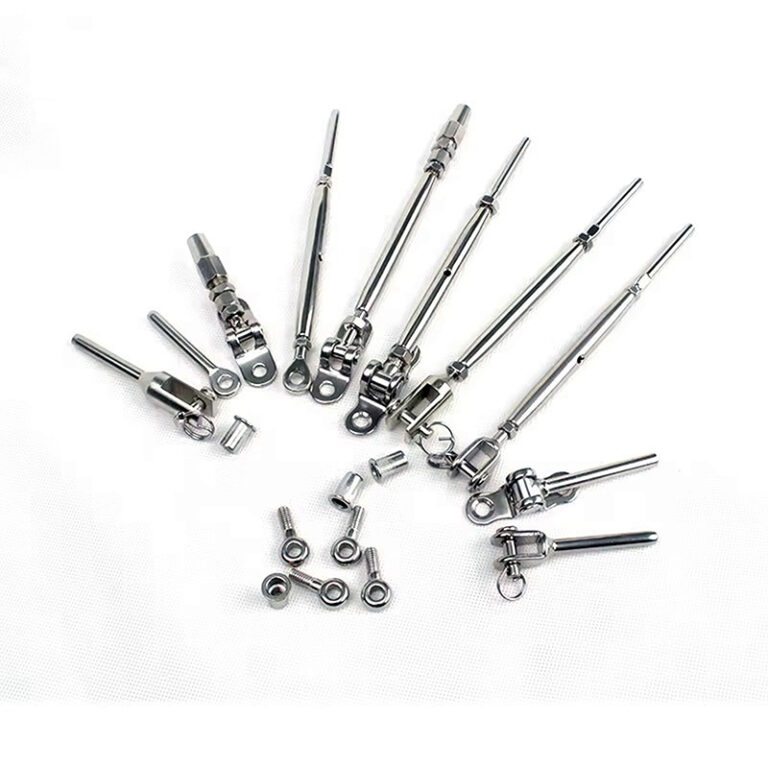

Cable End Fittings: Swage terminals, threaded studs, and eye terminals machined from 316 stainless bar stock. These aren’t stamped fittings—they’re precision-turned components that maintain cable strength ratings. Our cable fitting fabrication 316L marine grade processes ensure consistent grain structure and corrosion resistance.
Tensioning Hardware: Turnbuckles, tension adjusters, and take-up assemblies that allow proper cable preload without over-stressing end connections. Each component tested to 2000+ lb working loads with 4:1 safety factors meeting IBC requirements.
Through-Post Systems: Complete hardware packages for cable runs through structural posts. Includes sleeves, compression fittings, and isolation bushings that prevent galvanic corrosion when posts are dissimilar metals.

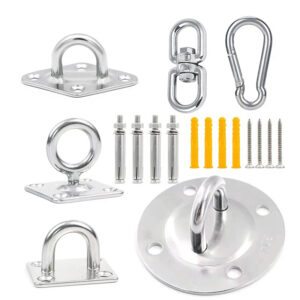

Surface Mount Brackets: Wall-mount and post-mount hardware for cable termination points. 316 stainless construction with mechanical connections—no welds that compromise corrosion resistance in salt environments.
▶ Get Complete Specifications ◀
Modular System Advantages
Standardized dimensions across all components mean inventory simplification and faster installation. Our ODM stainless cable hardware manufacturing experience with major distributors created these compatibility standards—parts work together regardless of when they’re ordered.
Surface treatments include brushed 316 finish for consistent appearance and mirror polish where visual impact matters. Both provide identical corrosion performance; the choice affects maintenance visibility, not longevity.
Material Grade Selection
316 vs 304 Reality: 316 stainless adds molybdenum for enhanced chloride resistance. Essential for marine environments, swimming pools, and coastal installations within 10 miles of saltwater. The material cost difference is minimal compared to replacement costs.
316L Low-Carbon Benefits: Reduces carbide precipitation during welding operations. Critical for custom fabrication projects where field welding might be required.
Technical Performance Data
| Component Type | Working Load (lbs) | Proof Load (lbs) | Cable Compatibility |
|---|---|---|---|
| Swage Terminals | 2,000 | 4,000 | 1/8″ – 3/16″ 7×7 |
| Turnbuckle Assemblies | 2,000 | 4,000 | 1/8″ – 3/16″ cable |
| Through-Post Fittings | 1,800 | 3,600 | 1/8″ standard |
| Surface Mount Eyes | 2,200 | 4,400 | All standard sizes |
| Environment | 316 Performance | Maintenance Schedule |
|---|---|---|
| Marine/Coastal | 20+ year service life | Annual inspection |
| Urban/Industrial | 25+ year service life | Bi-annual inspection |
| Interior Commercial | 30+ year service life | 3-year inspection |
Real-World Applications
Marine and Coastal Projects
A 200-unit waterfront development in South Carolina required cable railings for 18 months of construction exposure before final sealing. Commercial cable fitting systems using 316 stainless showed zero corrosion after completion, while alternate stainless grades on adjacent buildings required replacement.
Installation Impact: Modular fitting design reduced field assembly time by 35% compared to custom-fabricated alternatives. Standardized cable lengths and pre-assembled hardware packages eliminated job delays.
Commercial Interior Applications
Office complex in downtown Chicago specified cable railings for 12-story atrium. Marine grade cable components provided design consistency across varying humidity and temperature conditions. System handled thermal expansion without cable tension loss.
Performance Results: Two-year post-installation inspection showed zero maintenance requirements. Cable tension measurements remained within 5% of original specifications.
Industrial Environment Solutions
Manufacturing facility required cable barriers around equipment access areas. Exposure to cleaning chemicals and high-pressure washdowns demanded custom cable fitting hardware with enhanced sealing.
Our 23 years of experience with chemical plant installations guided material selection and gasket specifications. System performance exceeded 5-year design life with no component replacement.
▶ Discuss Your Specific Application ◀
Manufacturing and Installation Support
Precision Manufacturing Standards
Esang Metal manufacturing processes follow ASTM A276 specifications for 316 stainless bar stock. CNC machining maintains ±0.002″ tolerances on critical dimensions. This precision ensures consistent cable seating and eliminates field fitting adjustments.
Quality control includes material certification, dimensional verification, and proof load testing on sample components from each production run. Documentation packages support project specifications and inspection requirements.
Installation Efficiency
Standard Tool Requirements: Installation uses common hex keys and standard wrenches—no specialized tools required. This reduces contractor tool investment and allows standard crews to handle installation.
Field Assembly Time: Complete cable run installation averages 15 minutes per linear foot including cable cutting and tensioning. Modular components eliminate measurement errors and reduce waste.
Technical Support: Our engineering team provides installation guidance, load calculations, and troubleshooting support. 23 years of field experience means we’ve seen most installation challenges and developed practical solutions.
▶ Connect with Technical Support ◀
System Comparison and Selection
| Feature | Standard 304 Systems | 316 Marine Grade | Premium Fabricated |
|---|---|---|---|
| Material Cost | Baseline | +15% | +40% |
| Corrosion Resistance | Good | Excellent | Excellent |
| Installation Time | Standard | Standard | +25% |
| Maintenance Frequency | Annual | Bi-annual | Bi-annual |
| Service Life | 15 years | 25+ years | 25+ years |
Selection Criteria: Choose 316 grade for any installation within 10 miles of saltwater, pool areas, or high-chloride environments. The marginal cost increase delivers significantly longer service life and reduced maintenance expenses.
Frequently Asked Questions
Q: How do I determine proper cable tension for code compliance?
A: IBC requires minimum 50 lb/linear foot load resistance. Our tensioning hardware achieves this with approximately 300 lb cable tension. Included tension gauge ensures consistent installation.
Q: Can these fittings work with existing post systems?
A: Standard mounting patterns fit most structural posts. Our technical team provides compatibility verification and adapter solutions when needed.
Q: What’s the real difference between 304 and 316 for interior projects?
A: Interior installations can use either grade unless exposed to cleaning chemicals or pool chemicals. 316 provides insurance against unexpected corrosive exposure.
Q: How do you handle custom spacing requirements?
A: Standard components accommodate most spacing variations. Custom cable lengths and bracket positioning handle unique architectural requirements without component modifications.
▶ Get Project-Specific Guidance ◀
Industry Performance Standards
“Marine-grade cable railing systems show 40% longer service intervals compared to standard stainless installations in coastal environments.” —Marine Construction Institute
“Standardized cable fitting systems reduce installation labor costs by 25-35% while improving consistency and reliability.” —Commercial Contractors Association
“Proper material grade selection for environmental conditions prevents 90% of premature cable system failures.” —Building Hardware Performance Council
The combination of proven 316 stainless steel metallurgy, precision manufacturing, and system-based design approach delivers reliable cable railing performance. Our 23 years of manufacturing experience translates into components that work as specified, install efficiently, and provide long-term value for contractors, building owners, and occupants.
