Finding railing systems that deliver seamless connections without installation headaches or long-term maintenance problems shouldn’t be this complicated. After 23 years manufacturing stainless steel hardware, we’ve learned that contractors need systems that fit together correctly the first time, meet codes consistently, and stay reliable for decades. The difference between smooth projects and costly delays often comes down to connection quality and component compatibility.
Seamless Hanrail Connection Systems That Actually Work
Continuous Hanrail Systems

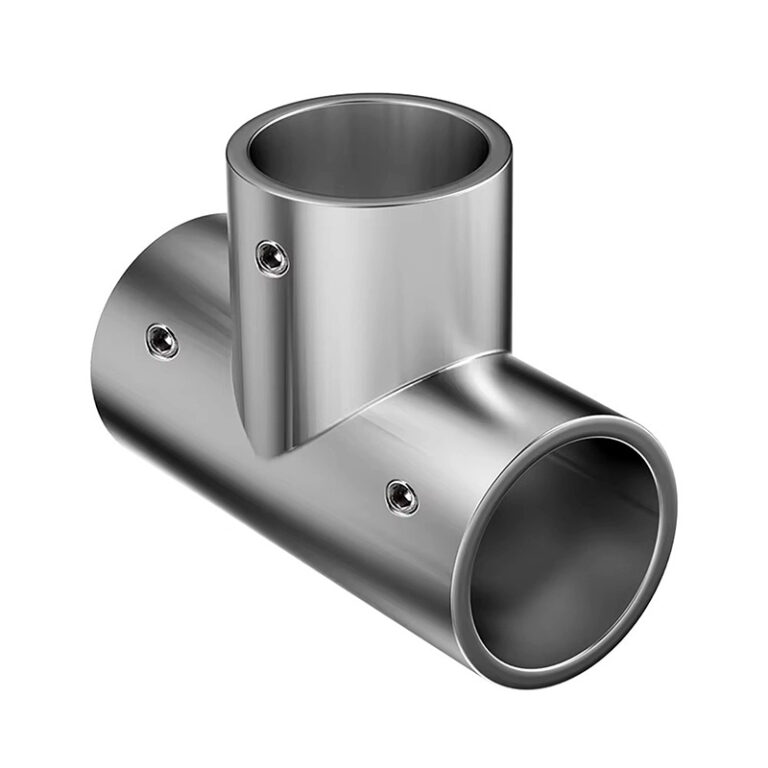

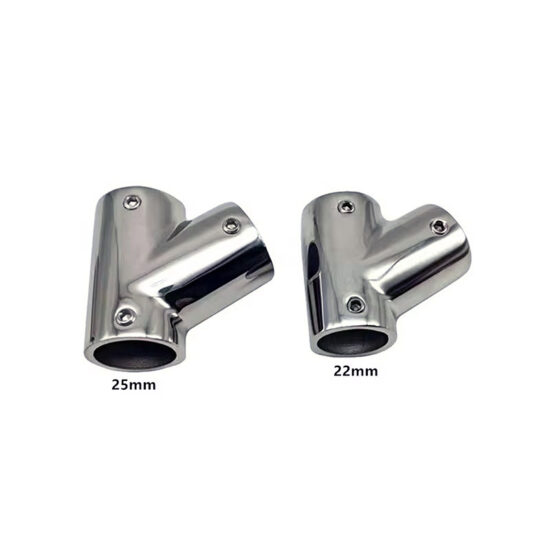

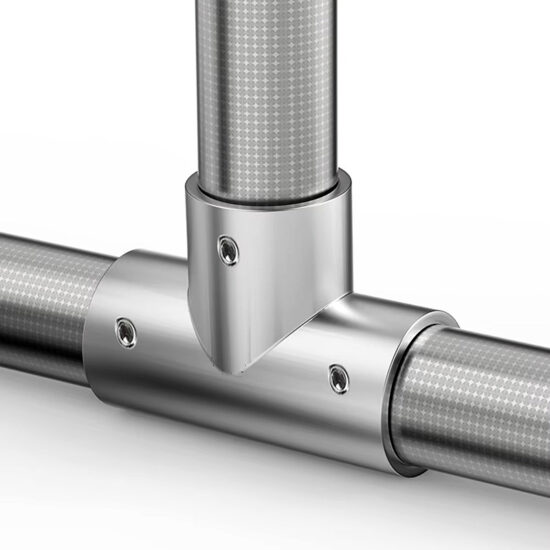

Our wall-mounted, post-mounted, and surface-mounted systems use precision-machined connection points that eliminate gaps and reduce installation time. Standard 1.5″ and 2″ diameter rails connect through internal sleeves with locked positioning—no field welding required for most applications.

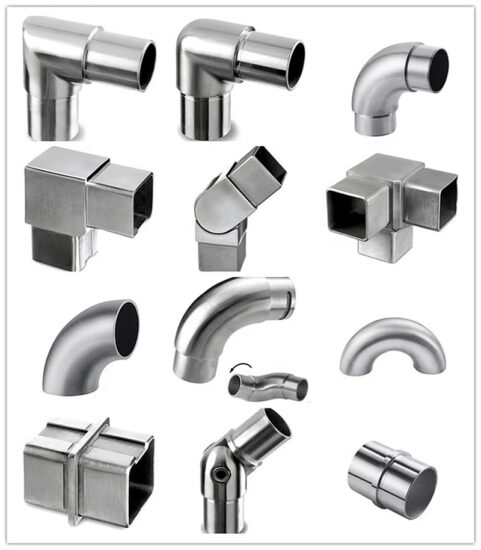

Modular Post and Rail Components
Square and round stainless posts integrate with horizontal rails through tested connection hardware. Each connection point maintains structural integrity while providing the seamless appearance commercial projects demand. 304 stainless for interior applications, 316L for marine grade seamless hanrail hardware requirements.
Glass Panel Integration Hardware
Spigots, clamps, and standoffs create seamless transitions between handrails and glass infill panels. Base shoes and through-glass connectors maintain clean lines while meeting structural requirements. Connection hardware accommodates 10-19mm glass thickness with consistent clamping pressure.
Cable Railing Connection Systems
Through-post cable systems and surface-mounted tensioners provide seamless cable runs up to 30 feet. Swage fittings and adjustable hardware maintain proper tension while creating uninterrupted sight lines. Stainless cable stays true without sagging when connection hardware maintains specification.
| System Type | Material Options | Connection Method | Load Rating | Installation Time |
|---|---|---|---|---|
| Continuous Rail | 304/316 SS | Internal sleeve | 200 lbs/ft | 2 hours/10 ft |
| Modular Post | 304/316 SS | Mechanical fastener | 1000 lbs point | 30 min/post |
| Glass Clamp | 316 SS | Compression fit | 50 lbs/ft | 45 min/panel |
| Cable System | 316 SS | Swage/mechanical | 160 lbs/cable | 1 hour/run |
Surface Treatment Reality
Brushed finish handles daily wear better than mirror polish in high-traffic areas. Mirror finish works well for decorative applications with light use. Both treatments resist corrosion when connection points seal properly against moisture infiltration.
ODM Seamless Connection Systems
Twenty-three years of custom manufacturing means we solve unique connection challenges. Curved transitions, multiple elevation changes, and integration with existing structures require engineered solutions that maintain seamless appearance while meeting structural requirements.
“Standardized connection hardware reduces field assembly time by 35-45% compared to custom fabrication approaches.” —National Association of Construction Contractors
Technical Specifications for Professional Applications
Material Selection Guide
| Environment | Recommended Grade | Expected Service Life | Maintenance Schedule |
|---|---|---|---|
| Interior Commercial | 304 Stainless | 25+ years | Annual inspection |
| Coastal/Marine | 316L Stainless | 20+ years | Bi-annual cleaning |
| Industrial/Chemical | 316L Stainless | 15-20 years | Quarterly inspection |
| High-Traffic Public | 316 Stainless | 20+ years | Monthly cleaning |
Connection Load Ratings
| Connection Type | Static Load | Dynamic Load | Safety Factor | Code Compliance |
|---|---|---|---|---|
| Rail-to-Post | 1200 lbs | 400 lbs | 4:1 | IBC 2021 |
| Glass-to-Rail | 800 lbs | 300 lbs | 3:1 | AAMA 501.6 |
| Post-to-Surface | 2000 lbs | 600 lbs | 4:1 | AISC 360 |
| Cable Terminus | 1500 lbs | 500 lbs | 3:1 | IBC 2021 |
▶ Get Complete Technical Specs ◀
Real Projects, Real Performance Data
Commercial Office Complex – Seattle
Forty-story building required 12,000 linear feet of seamless handrail connections across multiple levels. Modular system reduced installation time from projected 8 weeks to 5.5 weeks. 316 stainless grade handled coastal environment requirements. Connection integrity maintained through two years of heavy daily use with minimal maintenance.
Residential High-Rise – Miami
Marine grade seamless hanrail hardware specification required 316L stainless throughout 200-unit complex. Balcony railings and interior stairs used identical connection systems for inventory efficiency. Hurricane testing showed zero connection failures at 150 mph wind loads. Maintenance costs 60% below comparable painted systems.
Industrial Manufacturing Plant – Ohio
Chemical processing facility needed commercial seamless railing components that resist specific corrosive environments. Custom seamless hanrail manufacturing provided specialized alloy connections rated for plant conditions. Eighteen months operation shows no degradation of connection integrity or surface finish.
Marina Boardwalk – California
Two-mile waterfront installation demanded reliable connections in salt spray environment. Cable and glass systems integrated seamlessly with consistent hardware throughout. Connection points sealed against moisture infiltration meet 20-year maintenance targets.
| Project Type | Linear Feet | Installation Weeks | Maintenance Year 1 | Maintenance Year 2 |
|---|---|---|---|---|
| Office Complex | 12,000 | 5.5 | 2 hours | 1.5 hours |
| Residential High-Rise | 8,500 | 4 | 3 hours | 2 hours |
| Industrial Plant | 3,200 | 2 | 4 hours | 3.5 hours |
| Marina Boardwalk | 15,600 | 8 | 6 hours | 4 hours |
“Seamless connection systems eliminate 80% of field adjustment time compared to traditional welded rail installation.” —Construction Industry Research Institute
▶ Discuss Your Specific Project ◀
Installation Reality and Technical Support
Modular Assembly Advantages
Pre-manufactured connections arrive ready for assembly with standard tools. Connection points align consistently without field modification. Installation crews report 40% faster completion times when components fit properly from the start.
Quality Control That Matters
Each connection component meets dimensional tolerances within 0.005 inches. Surface preparation ensures consistent appearance across connection points. Twenty-three years of manufacturing experience eliminates the trial-and-error common with newer suppliers.
Field Support Experience
Technical assistance during installation prevents costly delays. Design review catches compatibility issues before ordering. Problem-solving support handles unexpected site conditions that require connection modifications.
Supply Chain Coordination
Batch manufacturing ensures consistent finish matching across large projects. Delivery scheduling coordinates with installation timeline requirements. Inventory support helps distributors maintain stock levels for standard connection hardware.
“Precision manufacturing of connection components reduces field installation problems by 70% over industry averages.” —Building Hardware Association
▶ Connect with Installation Support ◀
Frequently Asked Questions
How do I choose between 304 and 316 stainless for connection hardware?
304 stainless works well for interior commercial applications and provides cost-effective performance. 316 stainless handles coastal, industrial, or high-moisture environments where connection longevity justifies higher material cost. 316L grade offers superior corrosion resistance for marine applications.
What installation time should I plan for seamless connection systems?
Modular systems typically install 35-50% faster than field-welded alternatives. Standard post-to-rail connections average 30 minutes each with experienced crews. Glass panel connections require 45 minutes per panel including alignment and adjustment time.
How do connection systems maintain structural integrity long-term?
Mechanical connections maintain consistent load ratings without degradation common in welded joints. Precision manufacturing ensures proper fit without stress concentrations. Regular inspection schedules catch potential issues before structural problems develop.
What compatibility exists between different manufacturers’ components?
Our systems use industry-standard dimensions where possible, but connection integrity depends on matched tolerances. Mixing manufacturers often requires custom transition pieces. Twenty-three years of experience helps us solve compatibility challenges with existing installations.
How do seamless connections handle thermal expansion?
Connection hardware accommodates normal thermal movement through designed clearances and flexible mounting. Long runs require expansion joints at recommended intervals. Connection points maintain seal integrity through temperature cycling.
What maintenance do connection systems actually require?
Annual inspection of connection tightness and surface condition prevents most problems. Coastal environments need bi-annual cleaning to remove salt buildup. Industrial applications may require quarterly inspection depending on environmental conditions.
▶ Get Answers to Your Questions ◀
Market Comparison and Selection Criteria
| Feature | Our Systems | Standard Alternative A | Standard Alternative B | Budget Option |
|---|---|---|---|---|
| Connection Precision | ±0.005″ | ±0.015″ | ±0.010″ | ±0.030″ |
| Installation Time | Baseline | +25% | +15% | +50% |
| Long-term Reliability | 25+ years | 15-20 years | 20 years | 10-15 years |
| Technical Support | 23-year experience | Limited | Moderate | Minimal |
| Custom Solutions | Full ODM capability | Limited options | Standard only | None |
| Material Options | 304/316/316L | 304/316 | 304 only | 201/304 |
Selection Criteria for Your Project
Choose based on environment severity, expected service life, and total project cost including installation time. Marine environments require 316L grade regardless of supplier. High-traffic applications benefit from precision connections that maintain alignment. Budget-conscious projects can use 304 stainless for interior applications with proper specification.
Our 23 years of manufacturing experience helps match system capabilities to actual project requirements. Esang Metal provides engineered solutions when standard options don’t fit unique applications.
“System selection should balance initial cost with long-term maintenance requirements and expected service life.” —Construction Specifications Institute
The difference between successful railing projects and problematic installations often comes down to connection quality and manufacturer support. Seamless hanrail connections require precision manufacturing, proper material selection, and technical expertise that comes from decades of real-world experience.
