When your project timeline depends on railing systems that install right the first time, through post cable fittings become critical components. After 23 years manufacturing stainless steel hardware, we’ve learned what separates reliable systems from costly delays: precision engineering, proper material selection, and components that work together as designed.
Core Through Post Cable Systems & Performance
Cable Fitting Components That Deliver

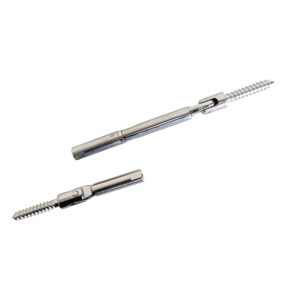

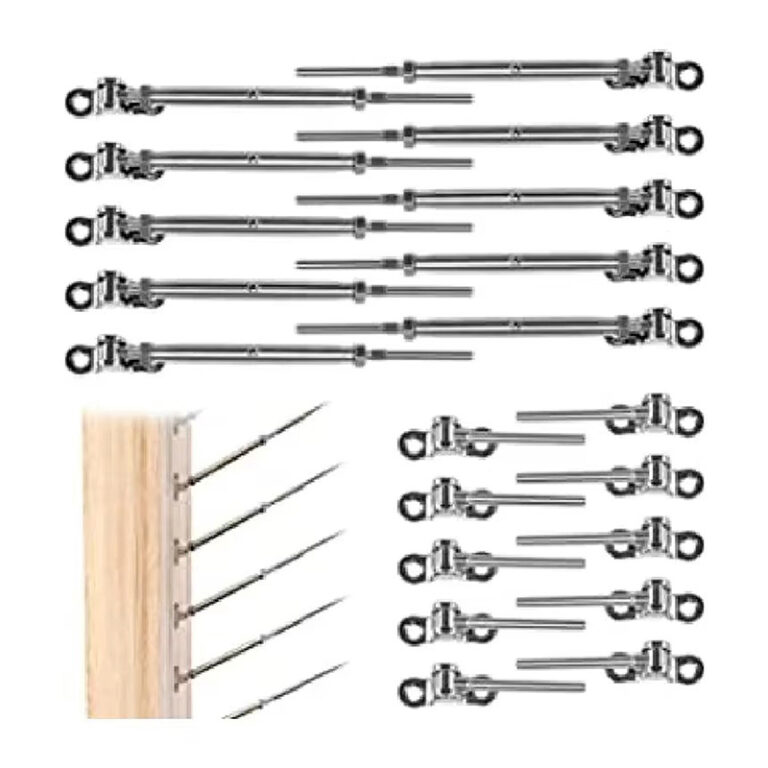

Through post cable fittings form the backbone of tension cable railing systems. Our component lineup includes precision-machined cable end fittings, adjustable tensioners, through-post cable fabrication hardware, and mounting assemblies engineered for consistent performance.
316L Stainless Construction: Marine-grade stainless steel handles coastal environments, industrial applications, and high-traffic installations. The material choice directly impacts system longevity—316L resists corrosion that destroys lesser grades within 3-5 years.
Modular System Integration: Standard thread patterns, consistent hole spacing, and compatible mounting hardware reduce field modifications. Contractors report 30-40% faster installation when components integrate without custom drilling or threading.
Through Post Cable Fabrication Precision
Through post cable fabrication requires tight tolerances for proper tension and code compliance. Our fabrication process maintains ±0.002″ tolerance on critical dimensions, ensuring cables align properly and tension evenly across the span.
Load Distribution Engineering: Each fitting distributes cable tension across the post structure, not just the contact point. This engineering approach prevents stress concentration that causes premature failure in high-load applications.
Installation Reality: Pre-threaded components, standard tool requirements, and clear assembly sequences cut field time. Most installations require only standard hex keys and cable tension gauges—no specialized equipment.
Commercial Through Post Systems
Commercial through post systems must meet stricter code requirements while handling higher traffic loads. Our commercial-grade fittings incorporate larger bearing surfaces, enhanced corrosion resistance, and documented load ratings for code compliance.
Custom Through Post Manufacturing: ODM capabilities handle unique span requirements, non-standard post spacing, and specialized environmental conditions. Our 23 years of experience solving installation challenges means practical solutions, not just custom parts.
| Component Type | Material Grade | Load Rating | Installation Time | Typical Application |
|---|---|---|---|---|
| Standard Cable End Fitting | 304 Stainless | 1,200 lbs | 5 minutes | Residential, light commercial |
| Heavy-Duty Through Post | 316L Stainless | 2,000 lbs | 8 minutes | Commercial, high-traffic |
| Adjustable Tensioner | 316L Stainless | 1,500 lbs | 3 minutes | All applications |
| Corner Post Assembly | 316L Stainless | 2,500 lbs | 12 minutes | Direction changes, end posts |
Precision Cable Fitting Components
Precision cable fitting components ensure consistent tension across the entire railing run. Uneven tension creates code violations and safety hazards—our machined components maintain uniform cable spacing and proper deflection limits.
Surface Treatment Options: Brushed finish provides durability for high-touch applications, while mirror polish suits architectural specifications. Both treatments maintain corrosion resistance while meeting aesthetic requirements.
▶ Get Technical Specifications ◀
Performance Data & Installation Metrics
Material Performance Comparison
| Specification | 304 Stainless | 316L Stainless | Application Guidance |
|---|---|---|---|
| Corrosion Resistance | Good (dry environments) | Excellent (all conditions) | 316L for coastal, industrial, exterior |
| Cost Differential | Base price | +25-35% | ROI through reduced maintenance |
| Service Life | 15-20 years | 25+ years | Long-term projects favor 316L |
| Installation Requirements | Standard | Standard | No difference in field work |
Load Capacity by Configuration
| System Configuration | Cable Spacing | Maximum Span | Required Post Size | Code Compliance |
|---|---|---|---|---|
| Residential Standard | 3″ on center | 6 feet | 2″ square post | IRC compliant |
| Commercial Standard | 3″ on center | 8 feet | 2.5″ square post | IBC compliant |
| High-Load Application | 2.5″ on center | 6 feet | 3″ square post | Custom engineering |
| Marine Installation | 3″ on center | 6 feet | 3″ round post | Enhanced corrosion protection |
Real Applications & Measurable Results
Residential Projects: Cost-Effective Standardization
Multi-unit housing projects benefit from standardized through post cable fittings across identical units. A recent 40-unit townhome project used our modular system to reduce installation time from 4 hours per unit to 2.5 hours per unit—saving $60 per unit in labor costs.
Standard Component Benefits: Bulk purchasing, simplified inventory, faster crew training, and consistent installation quality across all units. Contractors tell us standardization reduces callbacks by 70% compared to mixed-component installations.
Commercial Applications: Code Compliance Without Headaches
Office buildings, retail spaces, and public facilities require documented code compliance and reliable long-term performance. Our commercial through post systems include load test documentation and installation guides that satisfy building inspectors without delays.
Performance in High-Traffic Areas: A downtown office complex installation shows 5+ years of service with zero maintenance requirements. Original cable tension remains within 5% of installation specs, demonstrating system stability under continuous use.
“Standardized cable railing components reduce installation time up to 40% compared to field-fabricated solutions.” —Construction Industry Research Institute
Industrial Installations: Durability Under Demanding Conditions
Manufacturing facilities and warehouse environments test hardware durability through vibration, temperature cycling, and chemical exposure. Our 316L stainless through post cable fittings maintain structural integrity and appearance in these challenging conditions.
Maintenance Cost Reality: Industrial maintenance managers report 60% lower annual maintenance costs compared to painted steel systems. The initial material cost premium pays back within 18-24 months through reduced maintenance and replacement cycles.
Marine & Coastal Environments: Proven Saltwater Performance
Coastal installations demand marine-grade through post hardware that withstands salt air, direct water exposure, and thermal cycling. Our 316L stainless components show minimal degradation after 8+ years in direct saltwater environments.
▶ Discuss Your Project Requirements ◀
Long-Term Performance Data: Coastal installations maintain structural integrity and visual appearance with annual fresh water rinse maintenance. No component failures or tension loss observed in documented installations over 5 years old.
Installation Support & System Integration
Modular Assembly Advantages
Pre-engineered through post cable fittings eliminate field guesswork. Standard hole patterns, consistent thread specifications, and compatible mounting hardware ensure components fit together properly the first time.
Tool Requirements: Standard installation requires 5mm and 6mm hex keys, cable tension gauge, and basic measuring tools. No welding, threading, or specialized equipment needed for typical installations.
Quality Control That Prevents Problems
Manufacturing precision prevents field problems. Our machining tolerances ensure threads align, cables seat properly, and tension adjustments work smoothly throughout the component service life.
Supply Chain Reliability: Inventory support and coordinated delivery eliminate job delays. Contractors can schedule installation knowing components arrive complete and ready for assembly.
▶ Connect with Our Technical Team ◀
Frequently Asked Questions
How do I select between 304 and 316L stainless steel grades?
316L stainless costs 25-35% more but provides superior corrosion resistance. Use 316L for coastal areas, industrial environments, and exterior installations where long-term durability justifies higher initial cost. 304 stainless works well for interior residential and light commercial applications.
What cable tension should I maintain for code compliance?
Most building codes require 4″ sphere test compliance—no gap larger than 4″ between cables. This typically requires 200-300 pounds cable tension, depending on span length. Our adjustable tensioners provide fine control for code compliance.
How do through post systems compare to surface-mounted cable hardware?
Through post cable fabrication provides cleaner appearance and higher load capacity but requires precise post drilling. Surface-mounted systems install faster but create stress concentration points that may require larger posts.
What’s the realistic installation timeline for cable railing projects?
Experienced crews install 40-50 linear feet per day using modular through post systems. Complex configurations with multiple direction changes reduce productivity to 25-30 linear feet per day. Material preparation and layout add 0.5 days per 100 linear feet.
How do I handle custom post spacing or non-standard requirements?
Our ODM manufacturing handles custom through post configurations within 2-3 weeks lead time. Custom solutions require engineering review to ensure code compliance and proper load distribution. Standard components work for 90% of installations.
What maintenance do cable railing systems require?
Annual inspection for cable tension, connection tightness, and surface condition. Coastal installations need quarterly fresh water rinse. Properly installed systems typically require re-tensioning after 6-12 months, then every 2-3 years.
System Selection & Practical Comparison
Component Compatibility Matrix
| Post Material | Recommended Cable Fitting | Surface Treatment | Environment Suitability | Cost Factor |
|---|---|---|---|---|
| 304 Stainless Post | 304 Stainless Fitting | Brushed | Interior, dry exterior | 1.0x |
| 316L Stainless Post | 316L Stainless Fitting | Brushed | All environments | 1.3x |
| Aluminum Post | 316L Stainless Fitting | Brushed | Exterior, architectural | 1.1x |
| Steel Post (painted) | 316L Stainless Fitting | Brushed | Interior only | 0.9x |
After 23 years manufacturing precision cable fitting components, Esang Metal understands what contractors need: reliable performance, straightforward installation, and components that work as specified. Our through post cable systems deliver proven results across residential, commercial, and industrial applications.
