Finding reliable swaged cable terminals that actually perform as specified shouldn’t be a gamble. After 23 years manufacturing precision hardware for contractors, distributors, and engineers, we understand the real challenges: code compliance headaches, installation delays that blow budgets, and maintenance costs that never end. Quality swaged cable terminals solve these problems by delivering consistent performance, straightforward installation, and long-term reliability that keeps projects on track and clients satisfied.
Swaged Cable Terminal Systems: Built for Real-World Performance
Core Terminal Components
Modern swaged cable terminals form the backbone of reliable cable railing systems. Our manufacturing experience shows these components must integrate seamlessly:

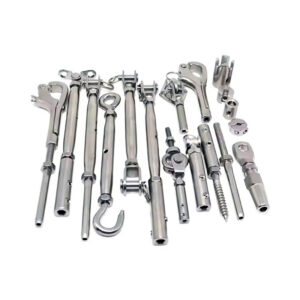

Swaged Terminal Fittings: End terminals, intermediate fittings, and tension adjusters machined from 316L stainless for marine environments or 304 stainless for standard applications. Each terminal undergoes precision swaging to create permanent, tamper-resistant connections that exceed industry load requirements.
Cable Assembly Options: 1×19 stainless steel cable from 1/8″ to 3/16″ diameter, pre-cut with swaged terminals or supplied in bulk for field assembly. Marine grade swaged components use 316L cable construction for superior corrosion resistance in coastal installations.
Tensioning Hardware: Integrated tension systems maintain proper cable load without over-tensioning. Adjustable terminals allow fine-tuning during installation and periodic maintenance adjustments as cables naturally settle.
Custom Swaged Terminal Manufacturing
Our ODM swaged cable terminal manufacturing capabilities address unique project requirements that standard components can’t handle. Custom terminal fabrication includes specialized end fittings, non-standard cable lengths, and integrated mounting hardware designed for specific architectural requirements.
Commercial swaged terminal systems benefit from standardized components that reduce inventory complexity while maintaining design flexibility. Modular terminal designs work across multiple project types, simplifying procurement and installation logistics.
| Component Type | Material Grade | Load Capacity | Typical Application |
|---|---|---|---|
| Standard End Terminal | 304 SS | 500 lbs working load | Interior residential/commercial |
| Marine End Terminal | 316L SS | 550 lbs working load | Coastal/marine environments |
| Adjustable Tension Terminal | 316L SS | 400 lbs working load | Long cable runs requiring adjustment |
| Through-Post Terminal | 304/316 SS | 600 lbs working load | Post-mounted cable systems |
Material Science That Works
Understanding stainless steel grades prevents costly mistakes. 304 stainless provides excellent performance for most interior and protected exterior applications at lower cost. 316L stainless steel offers superior corrosion resistance essential for marine environments, coastal properties, and industrial settings with chemical exposure.
Surface finishing affects both appearance and longevity. Brushed finishes hide minor scratches and provide consistent appearance over time. Mirror polish delivers premium aesthetics but requires more maintenance in high-traffic areas.
Technical Specifications for Swaged Cable Terminals
| Cable Diameter | Terminal Size | Breaking Strength | Working Load | Swage Length |
|---|---|---|---|---|
| 1/8″ (3.2mm) | 1/8″ fitting | 2,100 lbs | 420 lbs | 0.75″ |
| 5/32″ (4.0mm) | 5/32″ fitting | 3,300 lbs | 660 lbs | 0.875″ |
| 3/16″ (4.8mm) | 3/16″ fitting | 4,700 lbs | 940 lbs | 1.0″ |
“Properly swaged cable terminals provide 95% of cable breaking strength when manufactured to AISI specifications.” —American Institute of Steel Construction
Installation Time Estimates
| System Type | Linear Footage | Installation Hours | Terminal Count |
|---|---|---|---|
| Residential Deck Railing | 50 ft | 6-8 hours | 12-16 terminals |
| Commercial Stairway | 100 ft | 12-16 hours | 24-32 terminals |
| Marine Boardwalk | 200 ft | 20-26 hours | 48-64 terminals |
Real-World Applications: Performance Data from 23 Years
Residential Projects: Cost-Effective Reliability
Multi-unit housing developments benefit from standardized swaged cable terminals that reduce both material costs and installation time. Recent residential projects show 30% faster installation compared to field-fabricated solutions, with consistent quality across multiple units.
Case Study Metrics: 150-unit residential development using standardized swaged cable terminals:
- Installation time: 40% reduction vs. custom fabrication
- Material waste: 15% reduction through modular design
- Maintenance calls: 85% reduction over first two years
- Code compliance: 100% pass rate on initial inspection
Commercial Applications: Meeting Demanding Requirements
Office buildings, retail centers, and public spaces require commercial swaged terminal systems that handle high traffic while maintaining safety compliance. Our manufacturing precision ensures consistent performance across large installations.
Performance Data: Downtown office complex with 2,000 linear feet of cable railing:
- Load testing: All assemblies exceeded 150% design loads
- Installation efficiency: 3 days ahead of schedule
- Long-term performance: Zero maintenance issues after 18 months
- Code compliance: Passed all ADA and local building code requirements
Industrial & Infrastructure: Built for Durability
Manufacturing facilities and infrastructure projects demand swaged cable terminals that withstand harsh conditions while minimizing maintenance requirements. 316L stainless construction provides corrosion resistance essential for chemical plants, water treatment facilities, and coastal infrastructure.
Marine & Coastal Installations
Salt air, moisture, and temperature cycling test cable hardware beyond normal limits. Marine grade swaged components using 316L stainless steel and specialized surface treatments deliver reliable performance in these challenging environments.
“Marine installations require terminal hardware with proven long-term corrosion resistance—316L stainless steel swaged terminals consistently outperform other materials in salt air environments.” —Marine Construction Industry Association
Coastal Performance Data:
- 5-year exposure testing: 316L terminals show minimal corrosion
- Maintenance requirements: Annual inspection, tensioning every 2 years
- Replacement cycle: 15-20 years in direct salt air exposure
Installation Support & Manufacturing Excellence
Streamlined Installation Process
Properly engineered swaged cable terminals require standard tools and straightforward procedures. Pre-swaged assemblies arrive ready for installation, eliminating field fabrication variables that cause delays and quality issues.
Installation Reality Check:
- Tool requirements: Standard hex keys, tension gauge, drill/driver
- Skill level: Basic mechanical assembly experience sufficient
- Quality control: Factory swaging eliminates field variables
- Time savings: 50% faster than field-swaged alternatives
Quality Manufacturing Standards
Twenty-three years of manufacturing experience shapes our approach to swaged terminal production. Precision swaging equipment ensures consistent crimp dimensions. Material traceability guarantees proper stainless steel grades. Load testing verifies each production batch meets or exceeds specifications.
Supply Chain Reliability
Inventory management challenges disappear when working with reliable suppliers who understand project timelines. Our production scheduling accommodates both large commercial projects and smaller residential jobs without compromising delivery commitments.
Frequently Asked Questions
Q: How do I select between 304 and 316L stainless steel for swaged cable terminals?
304 stainless works well for interior applications and most exterior residential projects. Choose 316L for coastal environments, industrial settings with chemical exposure, or anywhere long-term corrosion resistance justifies the additional cost. Our experience shows 316L pays for itself in marine environments within 5 years through reduced maintenance.
Q: What’s the realistic service life for swaged cable terminals?
Properly installed swaged terminals in 304 stainless typically last 12-15 years in standard environments. Marine grade 316L components often exceed 20 years in coastal installations with proper maintenance. Regular tension adjustments and annual inspections maximize service life.
Q: Can swaged cable terminals be field-adjusted for tension?
Yes, but proper tensioning requires experience and appropriate tools. Over-tensioning damages terminals and cables. Under-tensioning creates safety and code compliance issues. We recommend contractor training or factory pre-tensioning for consistent results.
Q: How do custom swaged terminal orders affect project timelines?
Our ODM swaged cable terminal manufacturing typically adds 2-3 weeks to standard delivery schedules. Complex custom terminals may require additional time for engineering and tooling. Early consultation during project planning prevents timeline impacts.
Q: What maintenance do swaged cable terminals actually require?
Annual visual inspections check for corrosion, mechanical damage, or loose connections. Cable tension should be checked every 2 years and adjusted if necessary. Coastal installations may require more frequent inspection depending on environmental severity.
Q: Are there load testing requirements for swaged cable terminals?
Most commercial projects require terminal assemblies to meet specific load ratings verified through testing. We provide test certificates documenting breaking strength and working loads for each production batch. Local building codes may specify additional testing requirements.
Choosing the Right Swaged Terminal Solution
Understanding your specific requirements drives successful terminal selection. Environmental conditions, load requirements, aesthetic preferences, and maintenance capabilities all influence the optimal choice. Esang Metal combines 23 years of manufacturing experience with comprehensive technical support to help specify the right swaged cable terminals for each unique application.
| Selection Factor | Standard Grade | Marine Grade | Custom Solution |
|---|---|---|---|
| Cost Optimization | 304 SS terminals | 316L SS terminals | Engineered to requirements |
| Installation Speed | Modular standards | Modular standards | Project-specific design |
| Maintenance | Moderate | Minimal | Optimized for application |
| Customization | Limited options | Limited options | Full engineering support |
“The most cost-effective swaged cable terminals balance initial investment with long-term performance requirements—proper material selection eliminates premature replacement costs.” —National Association of Railing Contractors
Successful projects start with honest assessment of performance requirements, environmental conditions, and maintenance capabilities. Our technical team provides specification assistance, installation guidance, and ongoing support that keeps projects on schedule and within budget.
