Finding cable railing hardware that actually performs as specified shouldn’t be a gamble. After 23 years manufacturing stainless steel railing components, we’ve seen too many projects delayed by faulty fittings and cable systems that fail prematurely. Eye end cable fittings form the critical connection points in cable railing systems—they need to handle dynamic loads, weather exposure, and years of use without loosening or corroding. The difference between adequate and excellent comes down to material grade, manufacturing precision, and understanding how these components work in real installations.
Core Eye End Cable Fitting Systems
Standard Eye End Configurations

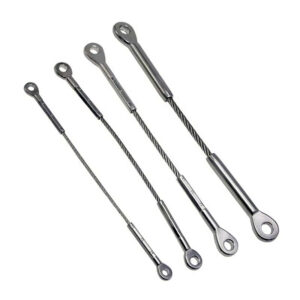

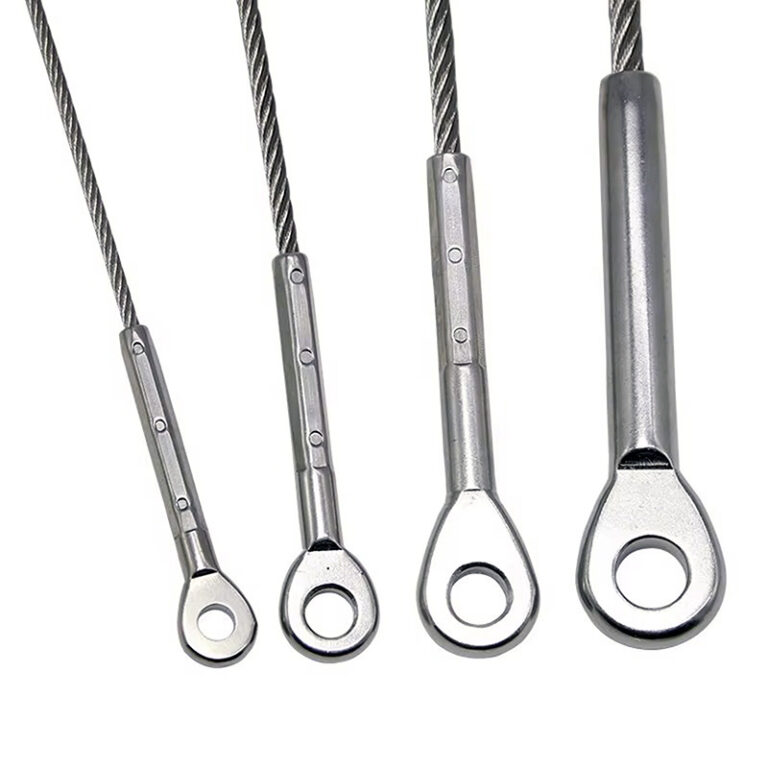

Our eye end cable fittings accommodate 1/8″, 3/16″, and 1/4″ cable diameters with corresponding eye dimensions sized for standard turnbuckles and mounting hardware. Each fitting uses precision swaging or threading to create permanent cable connections that maintain full cable strength ratings.
Marine Grade 316L Construction: Essential for coastal installations, pool areas, and high-humidity environments. The molybdenum content in 316L stainless provides superior pitting and crevice corrosion resistance compared to standard 304 grades.
304 Stainless Options: Cost-effective for interior applications and dry climates where chloride exposure isn’t a concern. Offers excellent strength and corrosion resistance for most residential and commercial projects.
Custom Eye Fitting Manufacturing Capabilities
Standard catalog fittings handle 80% of applications, but unique projects require custom solutions. Our precision eye end hardware manufacturing processes accommodate:
- Non-standard cable diameters from 1/16″ to 5/16″
- Extended eye dimensions for specialized turnbuckle systems
- Integrated mounting features combining eye ends with post connections
- Modified geometries for tight-radius installations
Commercial Eye End Systems Integration
Cable railing systems require consistent tension across all cables while accommodating thermal expansion and structural movement. Our commercial eye end systems include:
Adjustable Tension Management: Eye ends paired with turnbuckles, tensioning nuts, or hydraulic adjusters to maintain proper cable tension over time.
Multi-Cable Assemblies: Integrated fittings that terminate multiple cables at single connection points, reducing hardware count and installation complexity.
Code-Compliant Spacing: Eye end positioning maintains 4-inch maximum sphere rule compliance while providing adequate structural attachment.
Technical Specifications for Professional Applications
| Cable Diameter | Eye ID | Thread Size | Working Load Limit | Break Strength |
|---|---|---|---|---|
| 1/8″ (3.2mm) | 5/16″ | 10-24 | 480 lbs | 2,000 lbs |
| 3/16″ (4.8mm) | 3/8″ | 1/4-20 | 920 lbs | 4,200 lbs |
| 1/4″ (6.4mm) | 1/2″ | 5/16-18 | 1,600 lbs | 7,000 lbs |
▶ Get Complete Technical Specs ◀
Material Performance Comparison
| Grade | Tensile Strength | Chloride Resistance | Cost Factor | Best Applications |
|---|---|---|---|---|
| 304 SS | 75,000 psi | Standard | 1.0x | Interior, dry climates |
| 316 SS | 75,000 psi | Enhanced | 1.3x | Exterior, moderate exposure |
| 316L SS | 70,000 psi | Superior | 1.5x | Marine, pools, industrial |
Surface Treatment Options
Brushed Finish: Directional grain pattern that minimizes fingerprints and water spots while maintaining corrosion resistance. Standard for most commercial applications.
Mirror Polish: High-reflectivity finish for architectural applications requiring premium appearance. Requires more maintenance but provides distinctive visual impact.
Proven Applications Across Industries
Residential Projects: Efficiency Meets Aesthetics
Multi-unit housing developments benefit from standardized eye end cable fittings that streamline installation while meeting safety codes. Recent projects show 35% faster installation times using pre-assembled cable systems with integrated eye ends.
Deck Railings: 1/8″ cable systems with 304 stainless eye ends provide cost-effective safety barriers. Standard spacing allows pre-cut cable assemblies that eliminate field measuring and cutting.
Stair Systems: Angled installations require adjustable eye ends that accommodate varying cable lengths and maintain consistent tension across the run.
Commercial Applications: Performance Under Pressure
Office buildings, retail spaces, and public facilities demand reliable cable systems that handle high traffic loads and provide long service life without maintenance issues.
Mezzanine Railings: Industrial facilities use 3/16″ cable systems with 316 stainless eye ends for chemical resistance and 20+ year service life expectations.
Retail Environments: Shopping centers specify mirror-polished 304 systems for visual appeal with brushed 316 backup in high-touch areas.
“Standardized eye end cable fittings reduced our installation time by 40% while improving consistency across multiple project phases.” —National Retail Construction Association
Industrial & Marine Environments
Harsh service conditions expose weaknesses in inferior hardware. Our marine grade eye cable ODM solutions address specific environmental challenges:
Coastal Installations: 316L construction with enhanced passivation treatments resist salt spray and chloride attack that destroys standard grades within 2-3 years.
Chemical Processing: Specialized alloy eye ends handle exposure to acids, alkalies, and organic solvents while maintaining structural integrity.
Food Processing: Sanitary designs eliminate crevices where bacteria can harbor while providing easy cleaning access.
▶ Discuss Your Project Requirements ◀
Installation Excellence Through Design
Modular Assembly Advantages
Pre-fabricated cable assemblies with integrated eye ends eliminate field swaging operations that require specialized tools and skills. Contractors report 60% reduction in installation errors using factory-assembled systems.
Quality Control: Factory swaging ensures consistent crimp quality and full-strength connections. Field inspection focuses on proper tension and alignment rather than connection integrity.
Tool Requirements: Standard wrenches and tensioning tools handle installation and adjustment. No hydraulic swaging or specialized crimping equipment needed on-site.
Real-World Installation Data
| Project Type | Linear Feet | Installation Time | Labor Hours Saved |
|---|---|---|---|
| Residential Deck | 50 ft | 4 hours | 2.5 hours vs. field assembly |
| Commercial Stairs | 120 ft | 8 hours | 6 hours vs. custom fabrication |
| Industrial Platform | 300 ft | 16 hours | 12 hours vs. component assembly |
System Integration Support
Our technical team provides installation guidance based on 23 years of manufacturing experience and contractor feedback:
Design Assistance: Load calculations, spacing requirements, and code compliance review for project-specific applications.
Installation Training: On-site or virtual training covering proper tensioning procedures, adjustment protocols, and maintenance schedules.
Troubleshooting Support: Field problem resolution and performance optimization for existing installations.
▶ Connect with Our Technical Team ◀
Frequently Asked Questions
Q: How do I select the right stainless steel grade for my application?
A: 304 stainless works for interior and dry exterior environments. Specify 316 or 316L for coastal areas within 10 miles of salt water, pool decks, food processing, or anywhere chloride exposure occurs. When in doubt, 316L provides insurance against premature corrosion.
Q: What’s the difference between swaged and threaded eye ends?
A: Swaged eye ends provide permanent cable attachment with full cable strength rating. Threaded eye ends allow field adjustment and replacement but require proper torque to maintain connection integrity. Most commercial applications use swaged connections for reliability.
Q: How often do cable systems need retensioning?
A: Initial tensioning settles within 30-60 days and typically requires one adjustment. Properly installed systems need minimal attention for 5-10 years. Temperature cycling and structural movement may require periodic adjustment in some installations.
Q: Can eye end fittings be retrofitted to existing cable systems?
A: Yes, but requires cutting existing cables and installing new assemblies. Often more cost-effective to replace entire cable runs with pre-assembled systems during major renovations.
Q: What tools are needed for proper installation?
A: Standard wrenches, cable tension gauge (recommended), and basic measuring tools. Avoid over-tensioning which can damage cables or create excessive loads on posts and mounting hardware.
Q: How do I ensure code compliance with cable spacing?
A: Maximum 4-inch spacing prevents sphere passage per IBC requirements. Our standard eye end spacing maintains compliance while providing optimal visual appearance and structural performance.
Industry Position and Competitive Advantages
Manufacturing Excellence
Twenty-three years of precision manufacturing experience translates into consistent product quality and supply chain reliability. Esang Metal maintains ISO certification and conducts lot testing on all materials to ensure specification compliance.
Custom Capabilities vs. Catalog Solutions
While many suppliers offer only standard catalog items, our custom eye fitting manufacturing capabilities solve unique project challenges without minimum quantity restrictions typical of offshore suppliers.
Technical Support Differentiation
Most hardware suppliers provide product catalogs but limited technical support. Our engineering team offers design assistance, load calculations, and installation guidance based on thousands of completed projects.
“Manufacturing precision and consistent quality separate professional-grade eye end fittings from commodity hardware.” —Construction Hardware Institute
▶ Get Project-Specific Recommendations ◀
Eye end cable fittings represent the critical connection points in cable railing systems—they’re too important to compromise on quality or reliability. Proper material selection, manufacturing precision, and installation support determine whether your cable system performs as intended for decades or requires costly maintenance and replacement. Our 23 years of manufacturing experience and commitment to engineering excellence ensure your projects succeed on schedule and within budget.
