When standard railing hardware doesn’t fit your project specifications, you need more than catalog parts—you need engineered solutions that work the first time. After 23 years of custom fabrication experience, we’ve learned that non-standard size components require three things: precise engineering, reliable manufacturing, and installation support that actually helps. Whether you’re dealing with unusual dimensions, specific load requirements, or integration challenges, the right approach turns potential headaches into straightforward installations.
Core Non-Standard Manufacturing Capabilities
Custom Handrail Systems
Our non-standard fabrication 316L capabilities cover wall-mounted, post-supported, and continuous handrail systems sized for your exact requirements. Standard tube diameters work for most applications, but when architectural specifications, ADA compliance needs, or structural constraints demand different dimensions, we manufacture handrails from 1.25″ to 3″ outside diameter with wall thicknesses from 14 gauge to schedule 40.

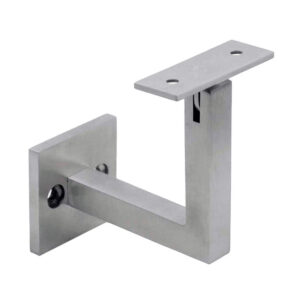

Wall return fittings, end caps, and mounting brackets get sized to match custom handrail dimensions. This eliminates the common problem of mixing standard brackets with non-standard rails—a combination that creates installation delays and potential code compliance issues.
Engineered Railing Posts & Custom Components
Non-standard railing posts address specific height requirements, unusual spacing constraints, and unique mounting conditions. We manufacture posts from 1.5″ to 6″ diameter, with heights ranging from 30″ to 60″ for standard applications, and up to 120″ for specialized commercial installations.
Custom base plates, post caps, and mounting hardware get engineered to match specific load requirements. Our ODM non-standard manufacturing process includes structural calculations to ensure components meet local building codes without over-engineering that inflates costs.
Specialized Glass Railing Hardware
Glass panel systems often require non-standard size components due to varying glass thicknesses, unusual panel dimensions, or specific architectural details. We manufacture glass clamps for thicknesses from 3/8″ to 1″, with custom spacing to accommodate non-standard panel widths.
Standoff hardware, base shoes, and continuous glazing systems get sized for specific projects. This approach eliminates the retrofit problems that occur when trying to adapt standard hardware to non-standard glass specifications.
Custom Cable Railing Solutions
Cable railing systems with non-standard spacing, unusual post configurations, or specific tension requirements need hardware sized accordingly. We manufacture cable rail fittings for post spacing from 4′ to 12′, with tensioning hardware rated for specific load requirements.
Through-post cable systems, surface-mount options, and angle fittings get customized for project-specific geometries. Our commercial non-standard components include pre-calculated tension specifications to ensure proper cable performance.
▶ Get Technical Specifications ◀
Material Selection for Non-Standard Applications
| Application Environment | Recommended Grade | Key Benefits | Typical Service Life |
|---|---|---|---|
| Interior Commercial | 304 Stainless | Cost-effective, adequate corrosion resistance | 20+ years |
| Exterior/Coastal | 316L Stainless | Superior corrosion resistance, marine grade | 25+ years |
| Industrial/Chemical | 316L Stainless | Chemical resistance, high durability | 25+ years |
| High-Traffic Public | 316L Stainless | Wear resistance, minimal maintenance | 25+ years |
Surface Treatment Options for Custom Components
| Finish Type | Durability Rating | Maintenance Requirements | Best Applications |
|---|---|---|---|
| #4 Brushed | High | Low – periodic cleaning | Commercial, industrial |
| #8 Mirror | Medium-High | Medium – regular cleaning | Architectural, retail |
| Electropolished | Highest | Lowest – minimal maintenance | Healthcare, food service |
Real Project Applications
Commercial Office Complex – Downtown Seattle
Challenge: 47-story building required handrails with 2.5″ diameter tubes to match architectural specifications, with custom mounting brackets for irregular wall conditions.
Solution: Manufactured custom non-standard systems using 316L stainless with engineered mounting hardware. Pre-fabricated assemblies reduced field installation time by 60%.
Results: 847 linear feet of custom handrails installed in 12 days versus 28-day estimate for field fabrication. Zero callbacks for fit issues.
Industrial Manufacturing Facility – Gulf Coast
Challenge: Corrosive environment required custom railing posts with specialized base mounting for existing concrete conditions. Standard height posts didn’t work with platform elevations.
Solution: Precision non-standard hardware using 316L stainless with custom base plates engineered for specific load conditions. Posts manufactured to exact height requirements eliminated field cutting.
Results: Installation completed 8 days ahead of schedule. 18-month follow-up showed no corrosion issues despite aggressive coastal environment.
Multi-Family Residential – Phoenix Metro
Challenge: Balcony railings needed custom spacing and height variations across 340 units due to architectural design requirements.
Solution: Modular custom non-standard systems with standardized connection methods but variable component dimensions. Pre-engineered assemblies maintained cost efficiency despite size variations.
Results: Consistent installation times across all units. 23% cost reduction versus field-custom approach.
Installation & Integration Support
Design Assistance for Non-Standard Projects
Our engineering team provides structural calculations, connection details, and installation sequences for non-standard size components. Esang Metal technical support includes AutoCAD details and specification assistance to ensure proper integration with existing structures.
Load calculations, wind load analysis, and seismic considerations get addressed during the design phase. This front-end engineering prevents expensive field modifications and ensures code compliance.
Quality Control for Custom Manufacturing
Non-standard components receive additional quality verification beyond standard production. Dimensional checking, fit testing with provided templates, and pre-assembly verification ensure components arrive ready for installation.
Material certification, weld inspection reports, and dimensional verification documents accompany each shipment. This documentation streamlines inspection processes and supports permit requirements.
▶ Discuss Your Project Requirements ◀
Manufacturing Capabilities & Lead Times
| Component Type | Size Range | Material Options | Typical Lead Time |
|---|---|---|---|
| Custom Handrails | 1.25″ – 3″ OD | 304/316L SS | 2-3 weeks |
| Non-Standard Posts | 1.5″ – 6″ diameter | 304/316L SS | 2-4 weeks |
| Custom Brackets | Project-specific | 304/316L SS | 1-2 weeks |
| Glass Hardware | Variable sizing | 304/316L SS | 2-3 weeks |
Precision Tolerances for Non-Standard Hardware
“Custom railing components require manufacturing precision within ±1/16″ to ensure proper field installation.” —National Association of Architectural Metal Manufacturers
Our CNC machining capabilities maintain tolerances to ±0.030″ for critical dimensions. Tube cutting accuracy stays within ±1/32″ for length dimensions. These tolerances ensure proper fit-up during installation, particularly important when standard adjustment methods aren’t available.
Cost Considerations & Value Engineering
Custom vs. Standard Component Analysis
Non-standard size components typically cost 25-40% more than catalog items, but this premium often pays for itself through reduced installation time and elimination of field modifications. Projects requiring more than 15% field modification of standard parts usually benefit from custom manufacturing.
Value engineering focuses on standardizing connection methods while customizing only essential dimensions. This approach maintains cost efficiency while solving specific project requirements.
Long-Term Performance Benefits
“Properly engineered non-standard components often outperform modified standard parts in long-term reliability testing.” —Architectural Metal Institute
Custom sizing eliminates stress concentrations that occur when standard components get modified for non-standard applications. This engineering approach extends service life and reduces maintenance requirements over 15-20 year periods.
▶ Request Project Cost Analysis ◀
Frequently Asked Questions
Q: How do minimum order quantities work for non-standard size components?
A: Most custom components require 25-piece minimums per size/configuration. However, we can often combine similar projects or work with distributors to meet minimums. Complex machined parts may require higher minimums due to setup costs.
Q: What design information do you need to quote non-standard components?
A: Dimensioned drawings, material specifications, quantity requirements, and installation environment details. Load requirements, code compliance needs, and project timeline help us recommend the most cost-effective approach.
Q: Can non-standard components integrate with existing standard railing systems?
A: Yes, we design custom components with standard connection methods whenever possible. This maintains compatibility with existing systems while solving specific dimensional or performance requirements.
Q: What quality documentation comes with custom manufactured components?
A: Material test reports, dimensional verification certificates, and assembly instructions. For structural components, we provide load test data and engineering calculations supporting code compliance.
Q: How do lead times for non-standard components compare to standard products?
A: Custom components typically require 2-4 weeks versus 1-2 weeks for standard items. Complex machining or special materials may extend timelines. We provide realistic schedules during the quoting process.
Q: What support is available during installation of custom systems?
A: Technical support via phone/email, detailed installation drawings, and field service for complex installations. Our 23 years of experience means we can anticipate and solve most installation challenges before they occur.
Getting Started with Custom Solutions
Non-standard size components solve real problems when engineered properly and manufactured to precision tolerances. The key is working with experienced manufacturers who understand both the technical requirements and practical installation reality.
Our approach combines 23 years of manufacturing experience with current production capabilities to deliver components that work as specified. Whether you need custom handrails for architectural requirements, specialized mounting hardware for difficult conditions, or complete systems sized for specific applications, proper engineering and manufacturing precision make the difference between successful installations and expensive callbacks.
