Finding square top rail components that actually deliver on their promises – proper fit, reliable performance, code compliance – shouldn’t be a gamble. After 23 years manufacturing stainless steel railing systems, we’ve learned what separates components that work from those that create headaches. Whether you’re specifying for a multi-unit residential project or managing inventory for contractor accounts, the right square rail system comes down to precision manufacturing, material selection that matches the environment, and modular design that speeds installation.

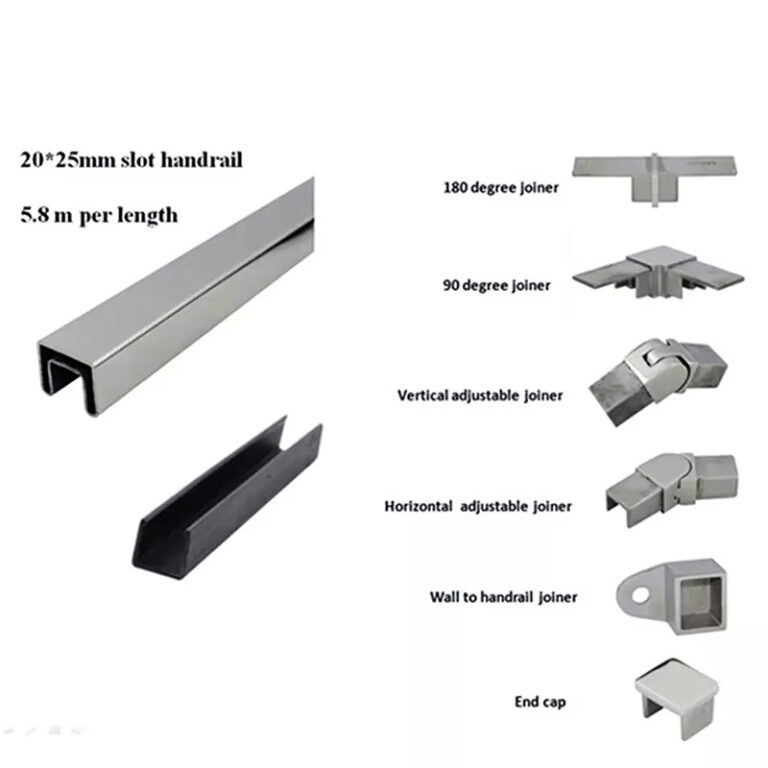

Complete Square Top Rail Systems & Components
Handrail Systems Built for Real Applications
Our square top rail handrail systems include wall-mounted, post-supported, surface-mounted, and continuous configurations. Standard 316L stainless construction handles coastal environments, while 304 grade works for most interior and protected exterior applications. Post-to-rail connections use through-bolting with concealed hardware for clean appearance and reliable attachment.
Wall-mounted systems span up to 8 feet between brackets using 2″ × 1.5″ square tubing. Surface-mount brackets adjust ±15 degrees for irregular walls. Through-wall anchoring distributes loads properly for code compliance.
Post-supported rails accommodate both level runs and stair applications. Adjustable rail brackets handle standard stair angles (30-38 degrees) without custom fabrication. Post spacing typically runs 6-8 feet for standard loading.
Railing Posts & Structural Components

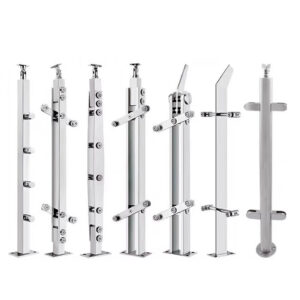

Square posts in 2″ × 2″ and 3″ × 3″ profiles handle different load requirements. Wall thickness varies from 14 gauge (0.075″) for light-duty residential to 11 gauge (0.120″) for commercial applications. Base mounting options include core-drilled anchor bolts, surface plates, and adjustable leveling systems.
Intermediate rails, toe kicks, and infill mounting hardware create complete barrier systems. Modular connections mean faster assembly and easier inventory management. Custom lengths available, but standard 8-foot and 12-foot sections cover most applications efficiently.
Glass Railing Hardware Integration
Square rail systems integrate with glass panel hardware through compatible post designs and mounting systems. Glass clamps, spigots, and base shoes coordinate with square rail geometry. Structural glazing tape and setting blocks included for proper glass support and drainage.
Post-mounted glass systems use the same structural posts as traditional infill applications. This flexibility lets contractors bid multiple infill options without changing the basic structure.
Material Specifications That Match Applications
| Grade | Environment | Typical Applications | Cost Premium |
|---|---|---|---|
| 304 Stainless | Interior, protected exterior | Office buildings, residential interior | Base cost |
| 316 Stainless | Coastal, chemical exposure | Marine projects, pool areas | +25-30% |
| 316L Low Carbon | Marine, high-corrosion | Waterfront, industrial | +35-40% |
Surface finishes include #4 brushed (standard), #8 mirror polish, and bead-blasted texture. Brushed finish hides minor scratches and maintains appearance with minimal maintenance. Mirror polish works for high-end applications but shows fingerprints and requires regular cleaning.
Custom Square Rail Manufacturing Capabilities
Standard components handle 80% of applications, but complex projects need custom solutions. Our ODM capabilities include:
- Modified post heights for specific deck levels or architectural requirements
- Special angles for curved stairs or non-standard pitch conditions
- Integrated mounting systems for unusual substrate conditions
- Hybrid configurations combining square rails with cable or glass infill
- Marine grade square rail systems with enhanced corrosion resistance
Twenty-three years of custom fabrication experience means we understand what works in the field versus what looks good on paper.
▶ Get Technical Specifications ◀
Technical Performance Data
Load Capacity & Code Compliance
| Application Type | Concentrated Load | Uniform Load | Post Spacing | Rail Height |
|---|---|---|---|---|
| Residential Stair | 200 lbs | 50 lbs/ft | 6 ft max | 34″-38″ |
| Commercial Guard | 200 lbs | 50 lbs/ft | 8 ft max | 42″ min |
| Industrial Platform | 200 lbs | 50 lbs/ft | 6 ft max | 42″ min |
| Assembly Occupancy | 200 lbs | 50 lbs/ft | 6 ft max | 42″ min |
Testing follows ASTM E935 protocols with safety factors built into published ratings. Post-to-base connections designed for 1.5× code loads to account for dynamic loading and installation variations.
Installation Time Estimates
| System Type | Linear Foot Rate | Setup Time | Crew Size |
|---|---|---|---|
| Wall-mounted handrail | 12-15 ft/hour | 0.5 hours | 2 person |
| Post & rail system | 8-12 ft/hour | 1 hour | 2 person |
| Glass integration | 6-10 ft/hour | 1.5 hours | 3 person |
| Stair applications | 6-8 ft/hour | 1 hour | 2 person |
Times assume normal substrate conditions and standard tool availability. Complex geometry or substrate issues affect productivity.
Real Project Applications & Results
Residential Multi-Unit Housing
A 240-unit apartment development needed consistent railing appearance across balconies, stairs, and walkways. Standard square rail components reduced fabrication costs 35% compared to custom work. Installation crews completed 20-25 linear feet per day including glass infill panels.
Maintenance after two years showed minimal corrosion on 304 stainless components. Property management reports easy cleaning and no structural issues despite heavy use.
Commercial Office Complex
Three-story office building renovation required ADA-compliant handrails and guard rails meeting IBC standards. Square top rail fabrication in 316L stainless handled the building’s coastal location. Modular design accommodated construction schedule changes without material waste.
Post-occupancy inspection at 18 months confirmed all connections remained tight. Building maintenance staff found the brushed finish easy to clean and scratch-resistant under normal traffic.
Industrial Manufacturing Facility
Chemical processing plant specified square rail systems for platform access and equipment guardrails. Marine grade square rail systems using 316L stainless resisted process chemical exposure. Custom post spacing accommodated equipment access requirements.
“Standardized square rail components cut our installation time 40% versus site-built alternatives while meeting all safety requirements.” —Plant Engineering Manager
Three-year service history shows minimal maintenance requirements and no structural degradation despite harsh operating environment.
Marine & Waterfront Projects
Waterfront restaurant deck required railings capable of handling salt spray and storm conditions. 316 stainless square rails with enhanced base sealing survived two hurricane seasons without structural damage. Glass infill panels remained secure despite 90+ mph wind exposure.
Maintenance consists of quarterly cleaning with mild detergent. No component replacement needed after 30 months service.
▶ Discuss Your Project Requirements ◀
Installation Support & System Integration
Modular Assembly Advantages
Pre-fabricated components reduce field labor and improve quality consistency. Standard connections use common tools – impact drivers, levels, measuring equipment. No special welding or cutting required for typical installations.
Component packaging includes all necessary hardware: bolts, brackets, gaskets, and setting materials. Assembly sequences follow logical progression from structural posts through rails to infill systems.
Quality Control & Field Fit
Manufacturing tolerances ensure components fit together properly. Post brackets accommodate ±1/8″ variation in rail length. Adjustable base plates handle substrate irregularities up to 1/4″ per 8-foot span.
Pre-shipment inspection covers dimensional accuracy, surface finish quality, and hardware completeness. Field support includes installation troubleshooting and design assistance backed by 23 years of project experience.
Technical Support Resources
- Design assistance for load calculations and code compliance verification
- Installation guidance including substrate preparation and anchor specifications
- Material selection based on environmental exposure and budget requirements
- Custom modification capability for non-standard conditions
- Supply chain coordination for multi-phase projects and inventory management
▶ Connect with Our Engineering Team ◀
Frequently Asked Questions
Q: How do I select between 304 and 316 stainless for square rail components?
A: Use 304 stainless for interior applications and exterior locations more than 3 miles from saltwater. Choose 316 grade within 3 miles of ocean, around pools, or where chemical exposure occurs. The 25-30% cost premium for 316 stainless provides significantly longer service life in corrosive environments.
Q: What’s the typical lead time for standard versus custom square top rail components?
A: Standard configurations ship within 2-3 weeks. Custom modifications add 1-2 weeks for engineering review and fabrication setup. Large projects benefit from phased delivery scheduling to match construction progress. Our 23 years of experience helps optimize delivery timing for your project schedule.
Q: Can square rail systems integrate with existing post installations?
A: Yes, if existing posts meet current structural requirements and spacing. We can fabricate rail brackets to match existing post configurations. Field measurement and verification ensures proper fit before manufacturing begins.
Q: What maintenance do square rail systems require?
A: Quarterly cleaning with mild soap solution maintains appearance. Annual inspection of connections and hardware typically shows minimal wear. Coastal installations benefit from monthly fresh water rinse to remove salt deposits. Well-designed systems require no routine component replacement for 15+ years.
Q: How do square rails compare to round handrail systems for commercial projects?
A: Square rails offer cleaner architectural lines and often integrate better with modern building designs. Installation complexity is similar, but square sections may provide slightly better grip characteristics for ADA compliance. Material and fabrication costs run within 5-10% of comparable round systems.
Q: What’s included with precision square rail hardware systems?
A: Complete systems include posts, rails, mounting brackets, anchor bolts, gaskets, and assembly hardware. Installation drawings and specifications accompany each shipment. Technical support covers design questions and field installation guidance.
Competitive Analysis & Selection Criteria
| Factor | Esang Metal | Standard Fabricators | Import Suppliers | Custom Shops |
|---|---|---|---|---|
| Lead Time | 2-3 weeks | 4-6 weeks | 6-12 weeks | 3-8 weeks |
| Customization | Full ODM capability | Limited | Minimal | Full custom |
| Technical Support | 23-year experience | Variable | Limited | Project-specific |
| Quality Control | ISO manufacturing | Variable | Inconsistent | Variable |
| Supply Chain | Reliable inventory | Project-based | Unpredictable | Project-based |
Selection depends on project requirements: standard systems for speed and cost efficiency, custom capability for complex applications, technical support for challenging installations.
Consider total project cost including installation time, technical support, and long-term maintenance. Our 23 years manufacturing experience provides value through proven designs and reliable delivery.
▶ Get Project Pricing & Support ◀
The right square top rail components balance initial cost with installation efficiency and long-term performance. Standard systems handle most applications cost-effectively, while custom capabilities solve unique challenges. Twenty-three years of manufacturing experience helps specify systems that work reliably in real-world conditions.
