Finding terminal post hanrail components that actually perform as specified shouldn’t be a gamble. After 23 years manufacturing stainless steel railing systems, we’ve learned that contractors need components that arrive on time, fit together properly, and meet code requirements without costly field modifications. The challenge isn’t just finding parts—it’s finding complete systems that work together reliably across different applications and environments.
Complete Terminal Post Systems and Hardware
Core Component Categories
Terminal Posts and Mounting Systems

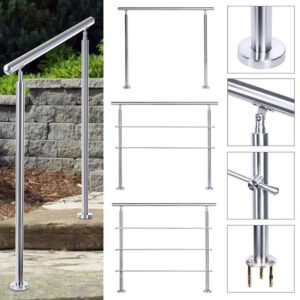

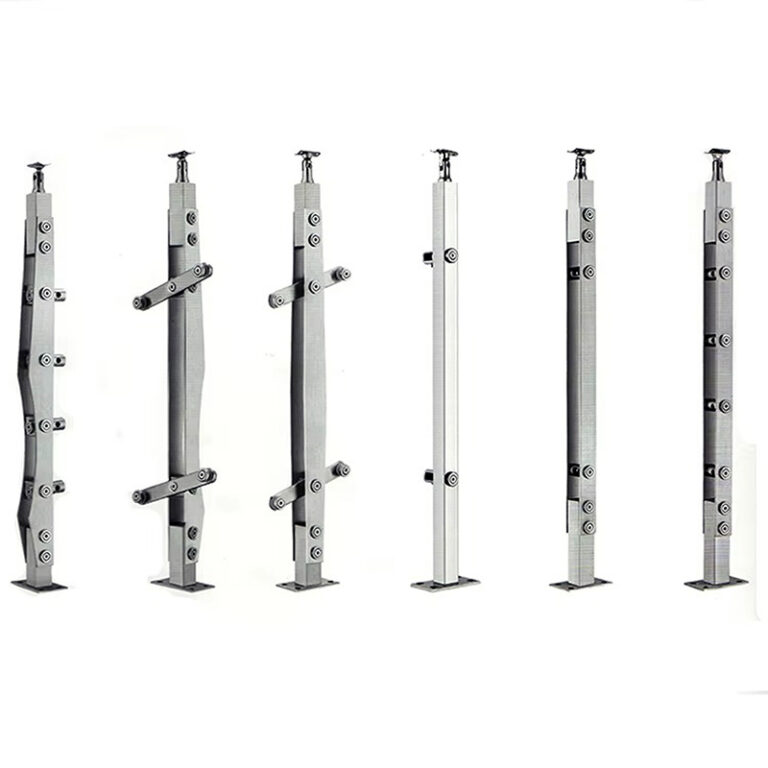

Our terminal post hanrail components include surface-mounted, core-drilled, and wall-return configurations in 304 and 316 stainless steel. Standard post diameters range from 1.5″ to 3″ with wall thickness options of 14-16 gauge. Surface mount bases provide 6″ and 8″ footprints with pre-drilled anchor patterns that match standard concrete anchor spacing.
Handrail Connection Hardware
Terminal post hardware fabrication 316L includes end caps, rail connectors, and transitional fittings designed for seamless integration. Our modular approach ensures compatibility across different handrail profiles—round, square, and rectangular—with secure mechanical connections that eliminate welding in most installations.
Glass Panel Integration Systems
Marine grade terminal post components feature specialized glass clamps and gasket systems for 6mm to 19mm tempered glass. Structural glazing applications use through-bolt connections with load distribution plates rated for specific wind and seismic loads per IBC requirements.
Cable Railing Terminations
Custom terminal post systems incorporate cable tensioning hardware, through-post guides, and end terminations. Cable exit points use precision-machined bushings that prevent cable wear while maintaining proper tension across runs up to 30 feet.
| Component Type | Material Options | Load Capacity | Installation Method |
|---|---|---|---|
| Surface Mount Posts | 304/316 SS | 200 lbs lateral | Anchor bolts |
| Core Drill Posts | 304/316 SS | 300 lbs lateral | Epoxy set |
| Wall Return Posts | 304/316 SS | 150 lbs lateral | Through-wall mount |
| Glass Clamp Systems | 316 SS | 50 lbs/sq ft | Mechanical fasteners |
Material Selection and Performance
304 vs. 316 Stainless Applications
Standard 304 stainless handles most interior and protected exterior applications with excellent corrosion resistance and cost efficiency. Marine grade terminal post components use 316L stainless for coastal, pool, and industrial environments where chloride exposure demands superior corrosion performance.
Surface Finish Durability
Brushed finishes provide practical fingerprint resistance and easier maintenance in high-traffic areas. Mirror polished surfaces work well for upscale commercial applications but require more frequent cleaning. Both finishes maintain appearance over 15+ years with proper maintenance.
▶ Get Material Selection Guide ◀
Technical Specifications and Load Requirements
Structural Performance Data
| Application | Wind Load Rating | Seismic Zone Compliance | Safety Factor |
|---|---|---|---|
| Residential Balcony | 15 psf | All zones | 2.5:1 |
| Commercial Stairs | 20 psf | All zones | 2.5:1 |
| Industrial Platforms | 25 psf | High seismic | 3:1 |
| Coastal Applications | 30 psf | All zones | 3:1 |
Installation and Compatibility Matrix
ODM terminal post manufacturing allows customization while maintaining standard connection interfaces. Our systems integrate with most major handrail profiles and infill options without requiring special tools or modifications.
| Post Diameter | Compatible Rail Sizes | Glass Thickness | Cable Capacity |
|---|---|---|---|
| 1.5″ | 1.25″ – 2″ | 6mm – 12mm | 3/16″ cables |
| 2″ | 1.5″ – 2.5″ | 8mm – 15mm | 1/8″ – 3/16″ |
| 2.5″ | 2″ – 3″ | 10mm – 19mm | 1/8″ – 1/4″ |
| 3″ | 2.5″ – 3.5″ | 12mm – 19mm | 3/16″ – 1/4″ |
Real-World Applications and Performance
Commercial and Institutional Projects
Office Buildings and Retail Centers
Commercial terminal post hardware installations typically reduce field labor by 30-40% compared to custom fabrication. Standardized components ensure consistent appearance across multiple levels while meeting ADA handrail height and extension requirements. Our modular systems adapt to different stair configurations without compromising structural performance.
Healthcare and Educational Facilities
These environments demand ODM terminal post manufacturing precision for infection control and safety. Smooth transitions eliminate sharp edges while maintaining required grip strength. Stainless steel surfaces resist common cleaning chemicals and maintain appearance under intensive maintenance schedules.
Residential and Multi-Housing Applications
Apartment and Condominium Complexes
Custom terminal post systems provide cost-effective standardization across multiple units. Builders report 25% faster installation times using our pre-configured packages compared to piece-by-piece sourcing. Standard connection details reduce approval time for repetitive installations.
Single-Family Custom Homes
High-end residential projects benefit from marine grade terminal post components even in non-coastal applications. The investment in 316 stainless provides long-term value through reduced maintenance and sustained appearance over decades of use.
Industrial and Infrastructure Applications
Manufacturing Facilities
Terminal post hanrail components in industrial settings must withstand chemical exposure, temperature cycling, and mechanical impact. Our 316L fabrication includes upgraded fasteners and gaskets rated for specific chemical environments. Installation typically occurs during planned shutdowns, requiring precise scheduling and reliable delivery.
Water Treatment and Marine Facilities
Coastal and industrial water applications demand the highest corrosion resistance available. Marine grade terminal post components undergo additional passivation treatments and quality control testing. Projects show minimal maintenance requirements over 10+ year service periods.
▶ Discuss Your Specific Application ◀
Installation Efficiency and Support
Pre-Installation Planning

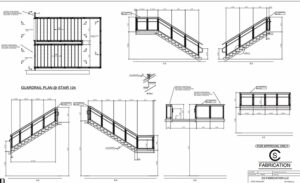

Commercial terminal post hardware systems include detailed installation drawings with anchor layouts, elevation requirements, and connection sequences. Our technical team provides project-specific guidance during design review to prevent costly field changes.
Standard Tool Requirements
Most installations require only common tools: impact drivers, levels, anchor installation equipment, and standard hand tools. No welding or specialized fabrication equipment needed on-site. This reduces contractor overhead and allows standard crews to handle installations efficiently.
Quality Control and Field Support
Each terminal post hanrail component package includes inspection checklists and torque specifications. Our quality control process ensures dimensional accuracy within ±1/16″ tolerances. Field support includes technical phone assistance and replacement part priority shipping when needed.
| Installation Phase | Time Estimate | Crew Size | Critical Tools |
|---|---|---|---|
| Layout and Marking | 1-2 hours | 2 people | Laser level, measuring tools |
| Anchor Installation | 2-3 hours | 2 people | Hammer drill, torque wrench |
| Post and Rail Assembly | 1-2 hours | 2 people | Impact driver, level |
| Final Adjustment | 30-60 minutes | 2 people | Hand tools, gauges |
▶ Request Installation Support ◀
Frequently Asked Questions
What’s the difference between 304 and 316 stainless for terminal post applications?
304 stainless works well for most interior and protected exterior installations with reasonable cost and good corrosion resistance. 316 stainless (marine grade) provides superior performance in coastal, pool, and industrial environments where chloride exposure occurs. The material cost difference is typically 15-20%, but 316 offers significantly longer service life in harsh conditions.
How do modular systems compare to custom fabrication for project timelines?
Modular terminal post hanrail components typically reduce total project time by 3-4 weeks compared to custom fabrication. Standard components ship in 2-3 weeks versus 6-8 weeks for custom work. Installation time drops 30-40% using pre-configured hardware versus field-fitted custom pieces.
What load testing and certifications apply to terminal post systems?
Our components meet IBC structural requirements with independent testing verification. Posts are rated for 200 lbs concentrated load in any direction with appropriate safety factors. Glass railing applications include wind load testing per AAMA standards. Seismic compliance covers all US zones with appropriate connection details.
How do you handle inventory and delivery coordination for large projects?
ODM terminal post manufacturing allows batch production scheduling aligned with construction timelines. We provide staged delivery matching installation sequences and coordinate with other trades to minimize storage requirements on-site. Our supply chain management includes backup inventory for critical path items.
What maintenance requirements should be planned for stainless steel railing systems?
Routine cleaning every 3-6 months maintains appearance and performance. Coastal applications need quarterly inspection and cleaning to prevent salt buildup. Moving parts like cable tensioners require annual lubrication. Properly installed systems show minimal maintenance requirements beyond cleaning over 15+ year service life.
Can existing railing systems be upgraded or modified using your components?
Many retrofit applications work well with our modular approach. Terminal post hardware fabrication 316L can often integrate with existing foundations and structural attachments. Custom adapters handle dimensional differences between old and new components. Site survey helps determine compatibility and modification requirements.
▶ Get Project-Specific Answers ◀
Selecting the Right Solution
Performance vs. Budget Considerations
| Priority Level | Recommended Components | Typical Applications | Cost Range |
|---|---|---|---|
| Essential | 304 SS standard systems | Interior stairs, protected areas | Base cost |
| Enhanced | 316 SS with upgraded hardware | Commercial, high-traffic areas | +20-30% |
| Premium | Custom terminal post systems | Coastal, architectural features | +40-60% |
| Specialized | Marine grade with custom engineering | Industrial, extreme environments | +60-100% |
Competitive Advantages
Twenty-three years of manufacturing experience has taught us that system reliability trumps individual component specifications. Our integrated approach ensures compatibility across all elements while maintaining competitive pricing through efficient production methods.
Quality Integration: Unlike suppliers who source components separately, our in-house manufacturing controls tolerances and finish consistency across entire systems. This reduces field adjustment time and ensures proper fit.
Technical Support: Our engineering team provides application-specific guidance rather than generic product information. Real-world installation experience helps prevent common problems before they occur on-site.
Supply Chain Reliability: Direct manufacturing control means better delivery predictability and quality consistency. We maintain safety stock for standard configurations and can expedite custom requirements when needed.
Working with Esang Metal provides access to complete terminal post hanrail component systems backed by proven manufacturing capabilities and responsive technical support. Our focus on practical solutions helps contractors deliver projects on time and within budget while meeting all performance requirements.
