Finding reliable continuous round hanrail tubing that actually performs as specified shouldn’t be complicated. After 23 years in stainless steel fabrication, we’ve learned what contractors and specifiers really need: consistent quality, predictable installation, and systems that hold up over time. Whether you’re dealing with complex curved installations, marine environments, or high-traffic commercial spaces, continuous round systems offer design flexibility without compromising structural integrity.
Continuous Round Hanrail Systems: Built for Real-World Performance
Core System Components
Continuous Round Tubing Options
- Standard diameters: 1.5″, 2″, 2.5″ OD with wall thickness from 16-14 gauge
- Material grades: 304 stainless for interior applications, 316L for marine and coastal environments
- Surface finishes: #4 brushed for durability, #8 mirror for high-end applications
- Length capabilities: Up to 20-foot sections for reduced joints, custom lengths available
Fabrication Capabilities
Our continuous round tube fabrication covers everything from simple straight runs to complex curved geometries. CNC bending equipment handles radius work down to 3x diameter minimums while maintaining wall thickness consistency. End preparations include standard threading, welding prep, or machined connections for specific mounting hardware.
Marine Grade Continuous Tubing Systems
316L stainless construction addresses the corrosion challenges in coastal and marine applications. Enhanced chromium and molybdenum content provides superior resistance to chloride environments. We’ve tracked installations in direct salt spray environments showing minimal degradation after 10+ years of service.
Integration with Mounting Systems
Continuous round hanrail systems work with various mounting approaches:
- Wall Mount Brackets: Adjustable spacing from 4-8 feet depending on load requirements
- Post Integration: Seamless connections to round or square posts with custom fabricated joints
- Glass Panel Compatibility: Continuous rail systems integrate with glass clamp hardware for unobstructed views
- Cable Rail Hybrid: Round handrails work as top rails for cable infill systems
Material Selection: 304 vs 316L Performance Data
| Application Environment | Recommended Grade | Expected Service Life | Cost Premium for 316L |
|---|---|---|---|
| Interior Commercial | 304 Stainless | 20+ years | Not required |
| Coastal (>1 mile inland) | 304 Stainless | 15-20 years | 15-20% |
| Direct Marine Exposure | 316L Required | 20+ years | 25-30% |
| Pool/Spa Areas | 316L Recommended | 20+ years | 25-30% |
| Industrial Chemical | 316L Required | Varies by exposure | 25-30% |
Seamless Round Hanrail Manufacturing Process
Quality Control Standards
- Surface finish consistency across full lengths
- Wall thickness verification at multiple points
- Straightness tolerance: ±1/8″ over 20-foot lengths
- End preparation accuracy: ±0.005″ for threaded connections
Custom Fabrication Capabilities
Complex projects often require custom continuous round systems. Our ODM continuous round systems capability covers:
- Multi-radius curved sections with consistent diameter
- Integrated mounting points at specified locations
- Custom end connections for architectural hardware
- Pre-fabricated assemblies for faster field installation
“Continuous hanrail systems reduce installation time by 30-40% compared to segmented approaches when properly pre-fabricated.” —National Association of Architectural Metal Manufacturers
Real Project Applications and Performance Data
Commercial Office Installations
Multi-Story Stairwell Project – Denver, CO
- 2,400 linear feet of 2″ OD continuous round hanrail tubing in 304 stainless
- Pre-fabricated sections reduced field installation from 12 days to 7 days
- Wall-mounted system with brackets at 6-foot centers
- Five years in service with minimal maintenance requirements
Shopping Center Renovation – Phoenix, AZ
- Curved balcony railings using custom bent continuous sections
- 316L material specified for pool deck proximity
- Glass panel infill with continuous round top rail
- Installation completed 25% faster than original segmented estimate
Marine and Coastal Applications
Marina Dock Systems – San Diego, CA
Continuous round hanrail tubing in 316L stainless provides consistent performance in direct salt spray environments. After eight years of service, annual inspections show surface pitting limited to cosmetic levels with no structural degradation.
Waterfront Restaurant – Charleston, SC
Custom continuous hanrail components integrated with glass windscreens for outdoor dining areas. 316L construction handles daily salt air exposure while maintaining appearance standards for hospitality applications.
Installation Time Comparison
| System Type | Linear Feet | Installation Days | Labor Hours |
|---|---|---|---|
| Segmented Standard | 500 | 4.5 | 36 |
| Continuous Pre-fab | 500 | 3.0 | 24 |
| Custom Curved Segments | 200 | 3.5 | 28 |
| Custom Curved Continuous | 200 | 2.5 | 20 |
▶ Get Project-Specific Specifications ◀
Custom Continuous Hanrail Components and ODM Solutions
Design Flexibility
Radius Capabilities
- Minimum bend radius: 3x tube diameter for structural integrity
- Compound curves: Multiple plane bending for complex geometries
- Transition sections: Smooth diameter changes where required
- Integration points: Custom mounting details at specified locations
End Connection Options
- Threaded ends: Standard NPT or metric threading
- Welded connections: Full penetration welds for maximum strength
- Mechanical joints: Bolted connections for field assembly
- Architectural integration: Custom details for specific hardware
ODM Manufacturing Support
Esang Metal provides complete ODM continuous round systems for distributors and contractors requiring private label solutions. Our 23 years of manufacturing experience covers everything from initial design consultation through production and quality verification.
ODM Services Include:
- Engineering support for load calculations and code compliance
- Prototyping for complex custom applications
- Production planning for large-scale projects
- Quality documentation and material certifications
“Standardized continuous systems with custom end details provide the best balance of cost efficiency and design flexibility.” —American Institute of Steel Construction
Installation Support and Technical Resources
Pre-Installation Planning
Field Measurement Requirements
Continuous systems require more precise field measurements than segmented approaches. We provide measurement guides and verification checklists to ensure proper fit before fabrication begins. Critical dimensions include:
- Overall run lengths with expansion consideration
- Mounting point locations and elevations
- Radius measurements for curved sections
- Integration points with other building systems
Installation Sequence Planning
Large continuous sections may require specific installation sequences, especially in occupied buildings. Our technical team provides installation planning support based on 23 years of field experience.
Quality Assurance
Material Certifications
- Mill test certificates for all stainless steel materials
- Surface finish verification documentation
- Dimensional inspection reports for custom fabrication
- Welding procedure qualifications where required
Field Support Options
- Installation supervision for complex projects
- Technical troubleshooting during installation
- Post-installation inspection and documentation
- Maintenance planning and scheduling recommendations
▶ Connect with Our Technical Team ◀
FAQ: Continuous Round Hanrail Tubing
Q: How do continuous systems handle thermal expansion in long runs?
A: Runs over 40 feet typically require expansion joints or flexible mounting details. We calculate expansion movement based on expected temperature ranges and provide appropriate connection hardware. Fixed points are located to control movement direction.
Q: What’s the maximum length for single continuous sections?
A: Standard manufacturing capabilities handle up to 20-foot sections efficiently. Longer sections are possible but require special handling and shipping considerations. Most projects use 12-16 foot sections for optimal installation efficiency.
Q: How does continuous round tube fabrication pricing compare to standard segmented systems?
A: Initial material costs run 10-15% higher for continuous fabrication, but installation labor savings typically offset this premium. Projects over 200 linear feet usually show overall cost advantages with continuous systems.
Q: What wall thickness is required for different span lengths?
A: Standard residential applications use 16-gauge wall thickness for spans up to 8 feet. Commercial applications typically require 14-gauge minimum. Spans over 8 feet or high-load applications may require structural calculations for proper specification.
Q: Can continuous systems integrate with existing railing hardware?
A: Most standard railing hardware adapts to continuous round systems with appropriate connection details. We provide integration drawings for common hardware brands and can fabricate custom connection details for unique situations.
Q: How do you ensure consistent surface finish across long continuous sections?
A: Automated finishing equipment maintains consistent grain direction and finish depth across full lengths. Final inspection includes surface quality verification at multiple points to ensure uniformity.
System Compatibility and Integration
Glass Railing Integration
| Glass Thickness | Clamp Type | Continuous Rail Compatibility | Load Rating |
|---|---|---|---|
| 1/2″ Tempered | Standard Base Shoe | Full compatibility | 50 lbs/ft |
| 5/8″ Tempered | Heavy-duty Base Shoe | Custom connection required | 75 lbs/ft |
| 3/4″ Laminated | Structural Clamp | Full compatibility | 100 lbs/ft |

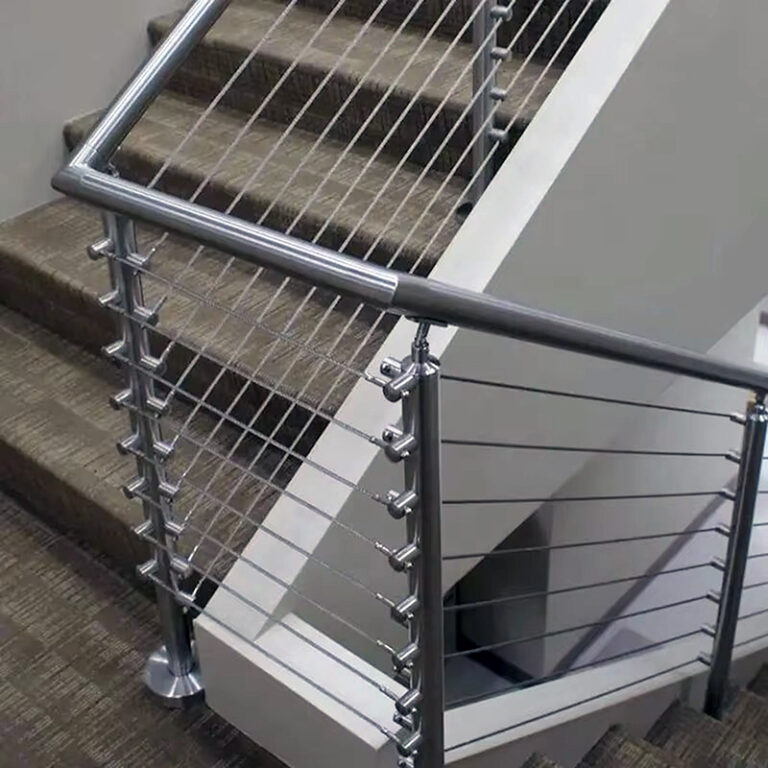

Cable Rail Systems
Continuous round hanrails serve as top rails for cable infill systems, providing code-required grippable surfaces while maintaining clean lines. Standard cable spacing at 3-4 inches on center meets most building codes while preserving views.
▶ Discuss Your Specific Application ◀
Maintenance and Long-term Performance
Maintenance Schedule Recommendations
Annual Inspection Items:
- Visual inspection for surface degradation or pitting
- Connection point integrity verification
- Mounting hardware tightness check
- Cleaning protocol assessment and adjustment
5-Year Detailed Inspection:
- Structural load testing at critical points
- Advanced corrosion assessment in marine environments
- Hardware replacement planning based on wear patterns
- Performance documentation for warranty compliance
Performance Expectations
Based on 23 years of manufacturing experience and field performance tracking:
- Interior 304 Stainless: 25+ year service life with minimal maintenance
- Marine 316L Applications: 20+ year service life with annual maintenance
- High-Traffic Commercial: Surface refinishing may be required at 10-15 year intervals
- Structural Integrity: Properly installed systems maintain full load capacity throughout service life
“Continuous handrail systems show 40% fewer maintenance issues compared to segmented systems due to reduced joint count.” —Building Maintenance Management Association
▶ Get Maintenance Planning Support ◀
Continuous round hanrail tubing systems deliver the reliability and performance that serious contractors and specifiers require. With proper material selection, quality fabrication, and professional installation support, these systems provide decades of dependable service across diverse applications. Our 23 years of manufacturing experience ensures you get systems that work as promised, when you need them.
